Fuchs UmwelttechnikKKFEasy Change Filter Unit

KKF Series

The KKF is a compact extraction and filter unit designed for versatile low-to-mid volume applications. Fuchs describes it as compact power with versatile capabilities, with multi-stage filter combinations, automatic filter monitoring by negative and differential pressure, and an LED display on the control panel that indicates filter saturation.

Product Overview Manufacturer Reference

30–335 m³/h6300–21000 Pa120/230 V / 50–60 Hz0.45–1.20 kW58–67 dBAW3 / IFA certified

Applications

Small inscription lasers with minimal material loss.
Small welding applications.
Soldering fumes in electronics production.
Solvent and adhesive vapours.

Key Features

Fuchs Umwelttechnik multi-stage filter combinations help maintain high filter capacity.
High flexibility: different blowers can be used depending on the specific application.
Automatic filter monitoring via negative and differential pressure.
Control-panel LED indicates filter saturation.
Welding fume separator class W3, IFA certified.

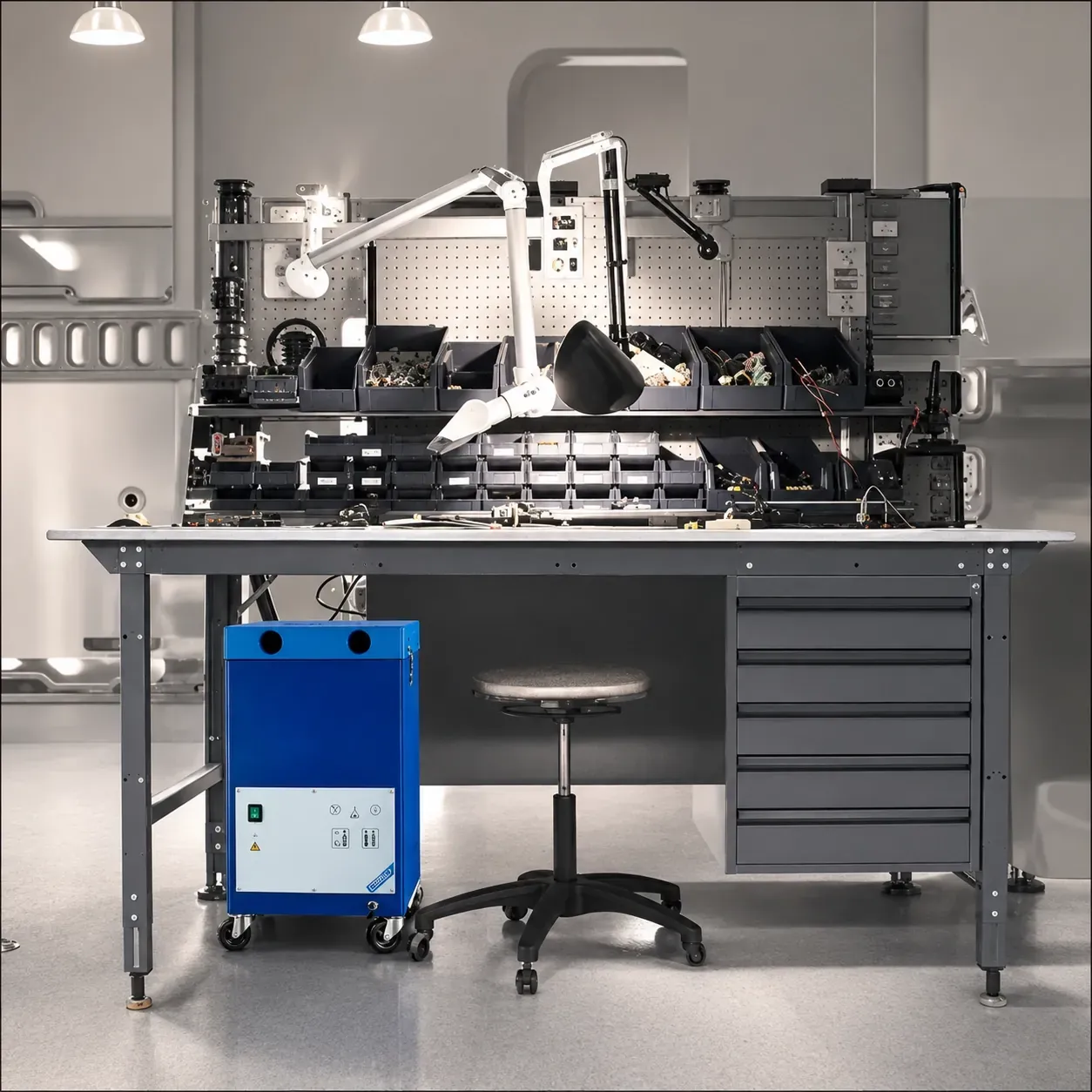

KKF Product View

Compact Power with Versatile Capabilities

The KKF can be used mobile or stationary and can also be transported in a car boot without modification, making it practical for flexible use across small workstations and compact production areas.

Technical Specifications

Parameter	Value
Model	KKF
Air volume max. without FA (m³/h)	30 – 335
Negative pressure max. (Pa)	6300 – 21000
Electrical connection (V/Hz)	120/230 V / 50 – 60
Electrical power (kW)	0.45 – 1.20
Sound pressure level 1 m (dBA)	58 – 67
Dimensions (mm)	380 x 380 x 625
Weight without FA (kg)	ca. 30

Selection Notes

Use KKF where extraction requirements fall within the 30–335 m³/h range.
Consider KKF for small laser, welding, soldering, solvent, or adhesive vapour applications.
Use the LED filter-saturation indication and automatic filter monitoring as maintenance planning aids.
Specify the blower configuration around the application’s extraction volume and pressure requirements.

Integration Notes

Place the extraction point close to the emission source whenever possible.
Confirm electrical supply requirements before specifying the unit.
Plan service access so easy-change filter maintenance remains practical after installation.
Review contaminant type, duty cycle, and capture geometry before final selection.
