Pantron’s IMX-N series is a family of multiplexed opto sensor amplifiers engineered for applications where multiple sensing points must be mounted close together without mutual interference. The range combines high optical power, long operating distance, and strong resistance to dust and contamination with manual sensitivity setting and model-specific output and timing options.
The IMX-N platform is built for machine designs that need dependable close-coupled photoelectric sensing without crosstalk between channels. Available in dual-channel, four-channel, and eight-channel configurations, the series gives OEMs a flexible way to scale sensing density while choosing between transistor or relay outputs and, on selected models, integrated switching delay and primary/secondary capability. This makes the family well suited for rugged industrial automation, material handling, and contamination-prone installations where stable through-beam performance matters.
| Model | Channels | Relay Output | Transistor Output | Switching Delay | Primary / Secondary |
|---|---|---|---|---|---|
| IMX-N23 | 2 | — | PNP / NPN | — | — |
| IMX-N24 | 2 | ✓ | — | — | — |
| IMX-N33 | 2 | — | PNP / NPN | ✓ | — |
| IMX-N34 | 2 | ✓ | — | ✓ | — |
| IMX-N430 | 4 | — | PNP / NPN | ✓ | ✓ |
| IMX-N440 | 4 | ✓ | — | ✓ | ✓ |
| IMX-N830 | 8 | — | PNP / NPN | ✓ | ✓ |
| IMX-N840 | 8 | ✓ | — | ✓ | ✓ |
All IMX-N models use manual 2-level sensitivity setting with light/dark switching selection. 4- and 8-channel models include primary/secondary operation for coordinated multi-unit installations.

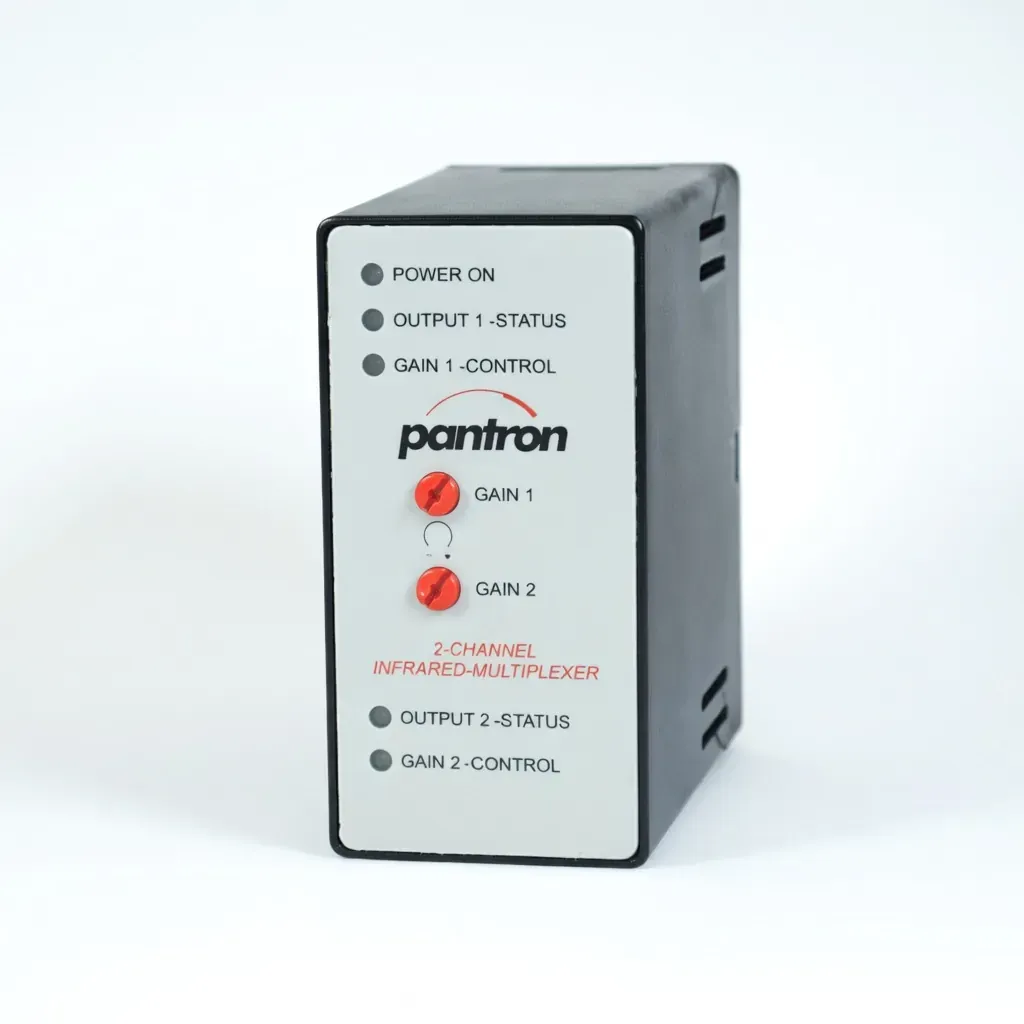

Dual-channel opto sensor with manual 2-level setting, transistor output, and light/dark switching.
Dual-channel relay-output version with manual 2-level sensitivity setting and light/dark switching.

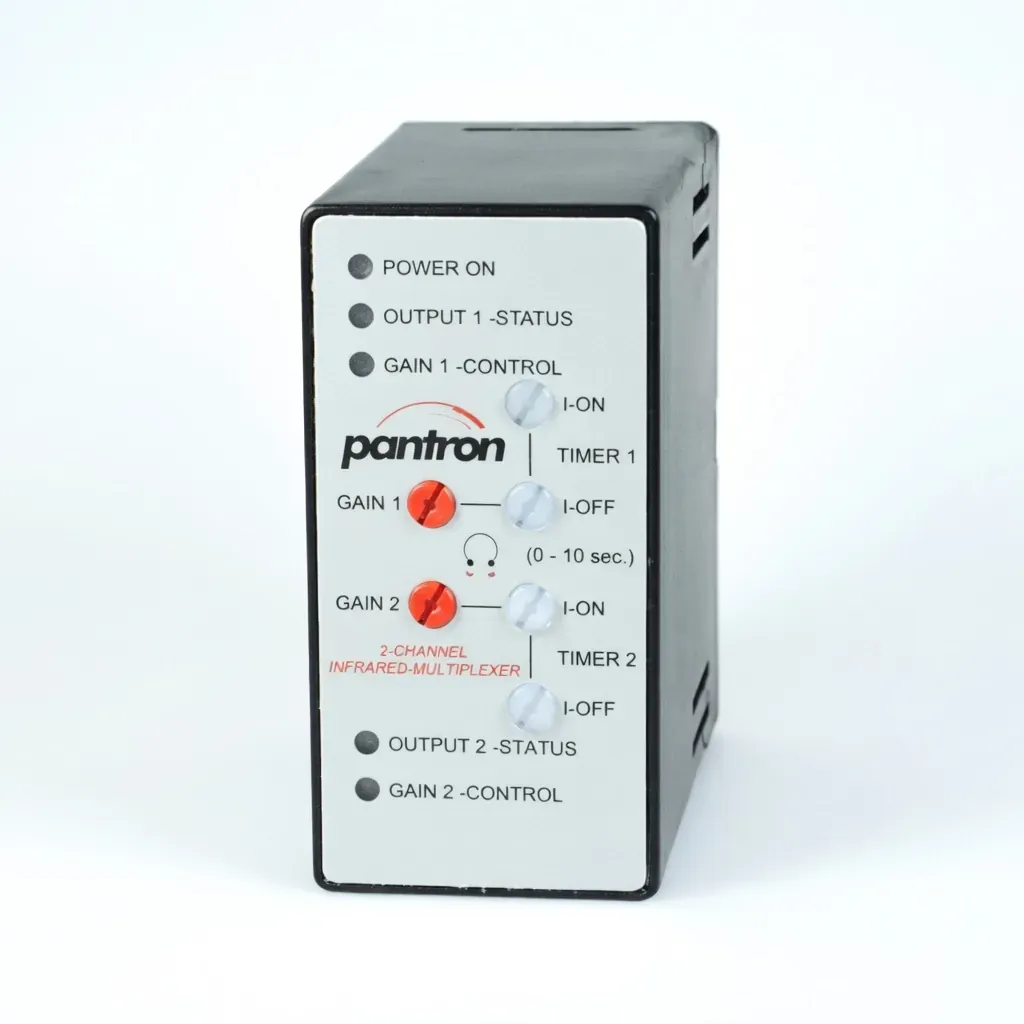

Dual-channel transistor-output model with timer and manual 2-level setting.
Dual-channel relay-output model with timer and manual 2-level setting.

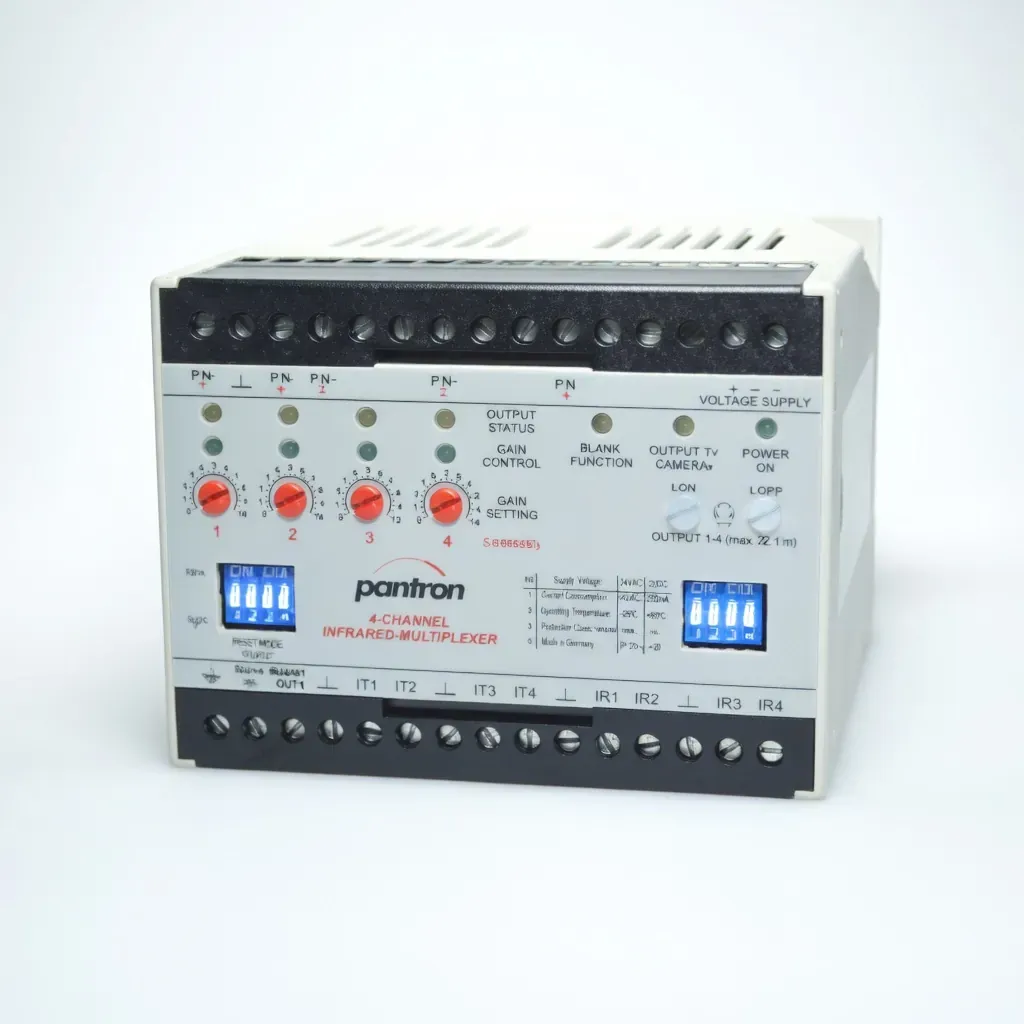

4-channel transistor-output unit with timer, light/dark switching, and primary/secondary operation.

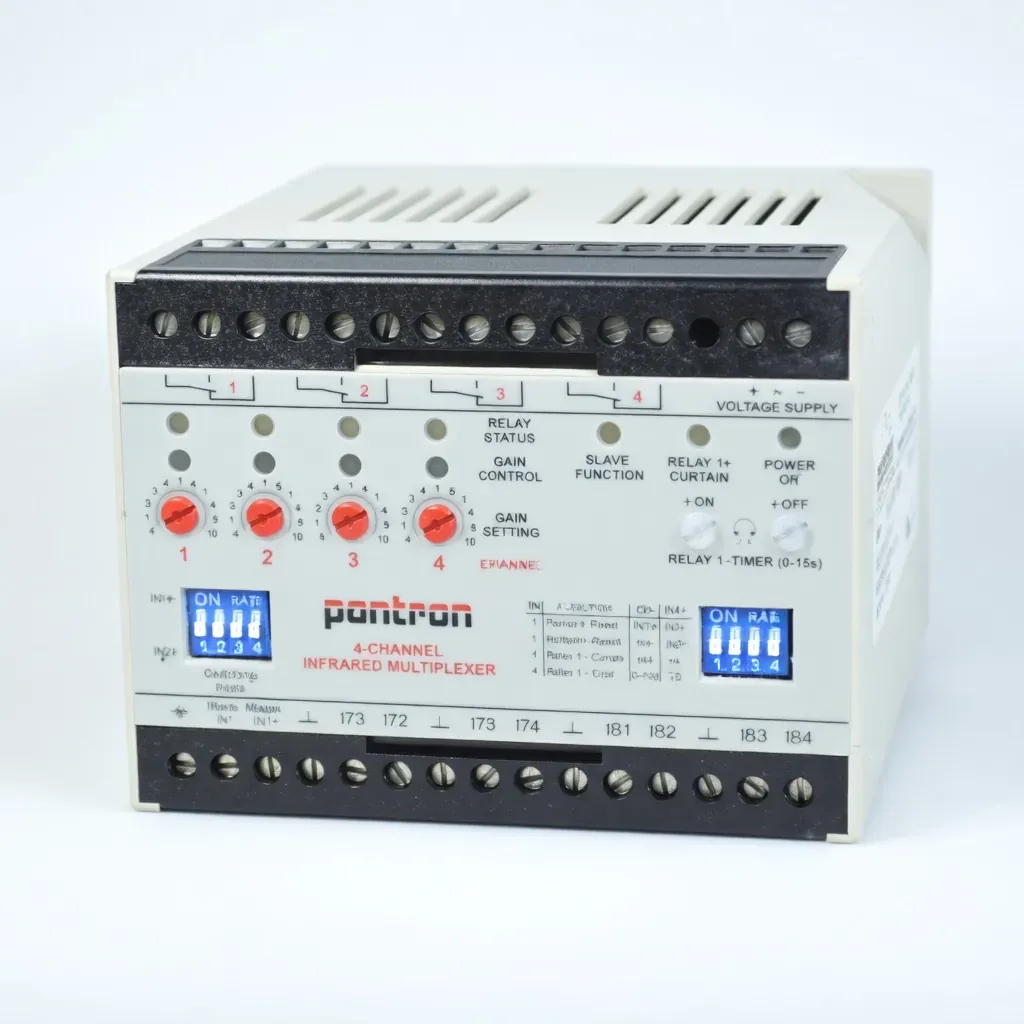

4-channel relay-output unit with timer, light/dark switching, and primary/secondary operation.

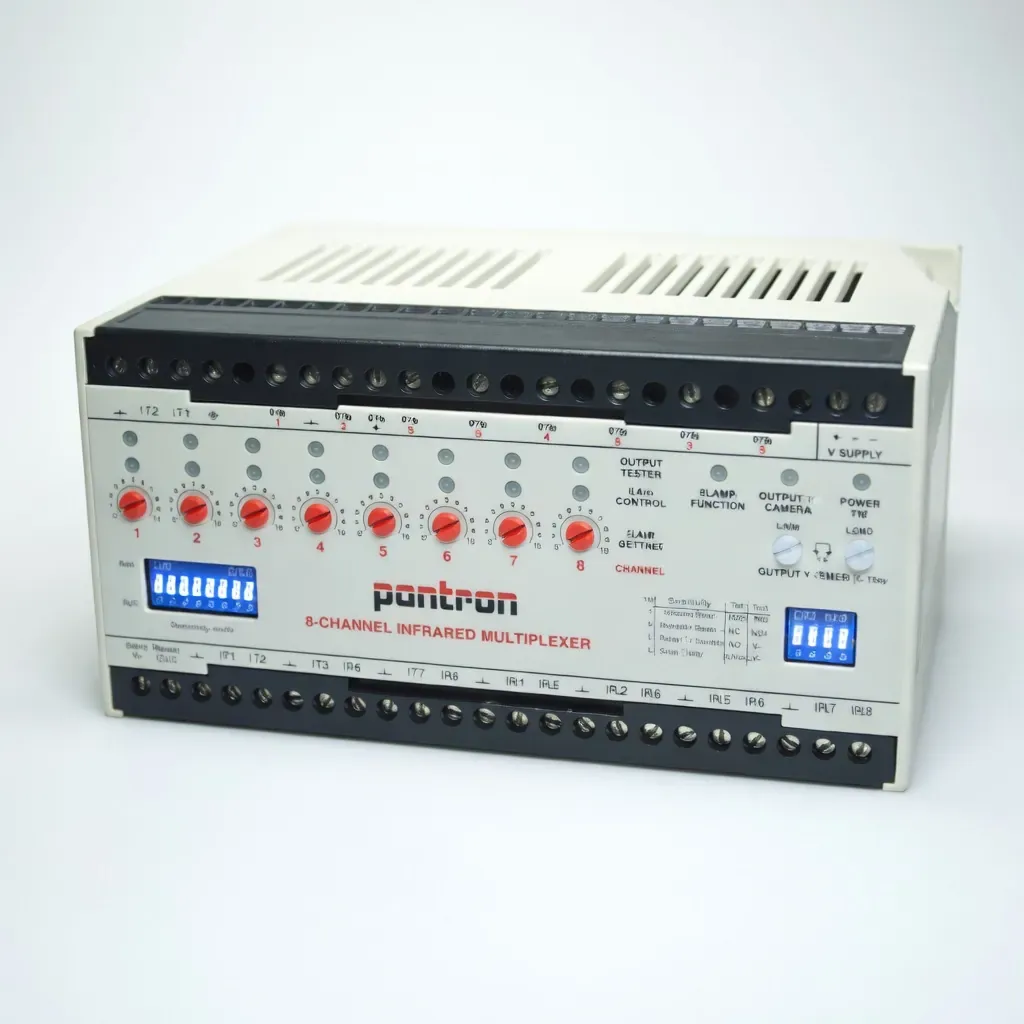

8-channel transistor-output model for higher sensing density with timer and primary/secondary operation.

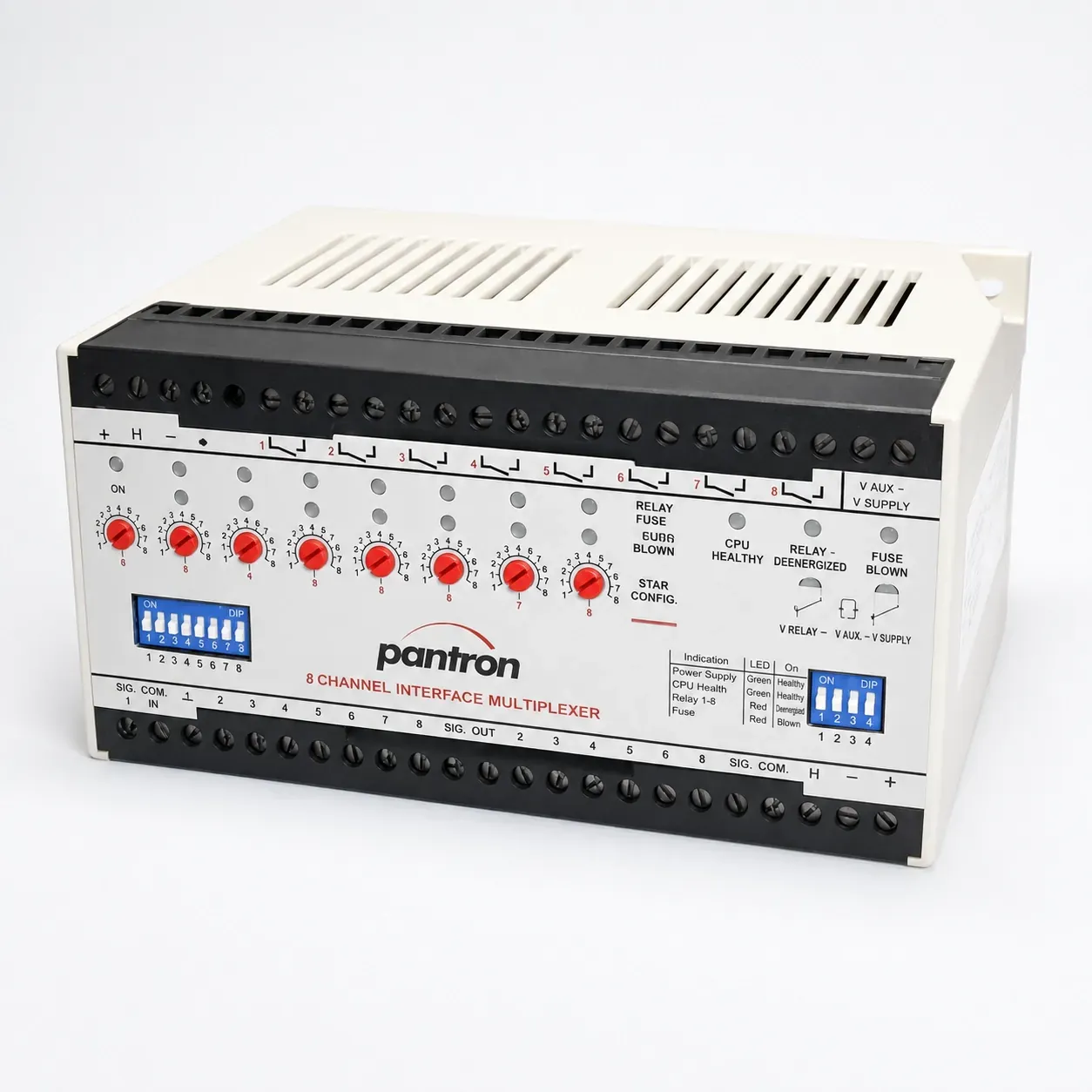

8-channel relay-output model with timer, light/dark switching, and primary/secondary operation.
