WinISL

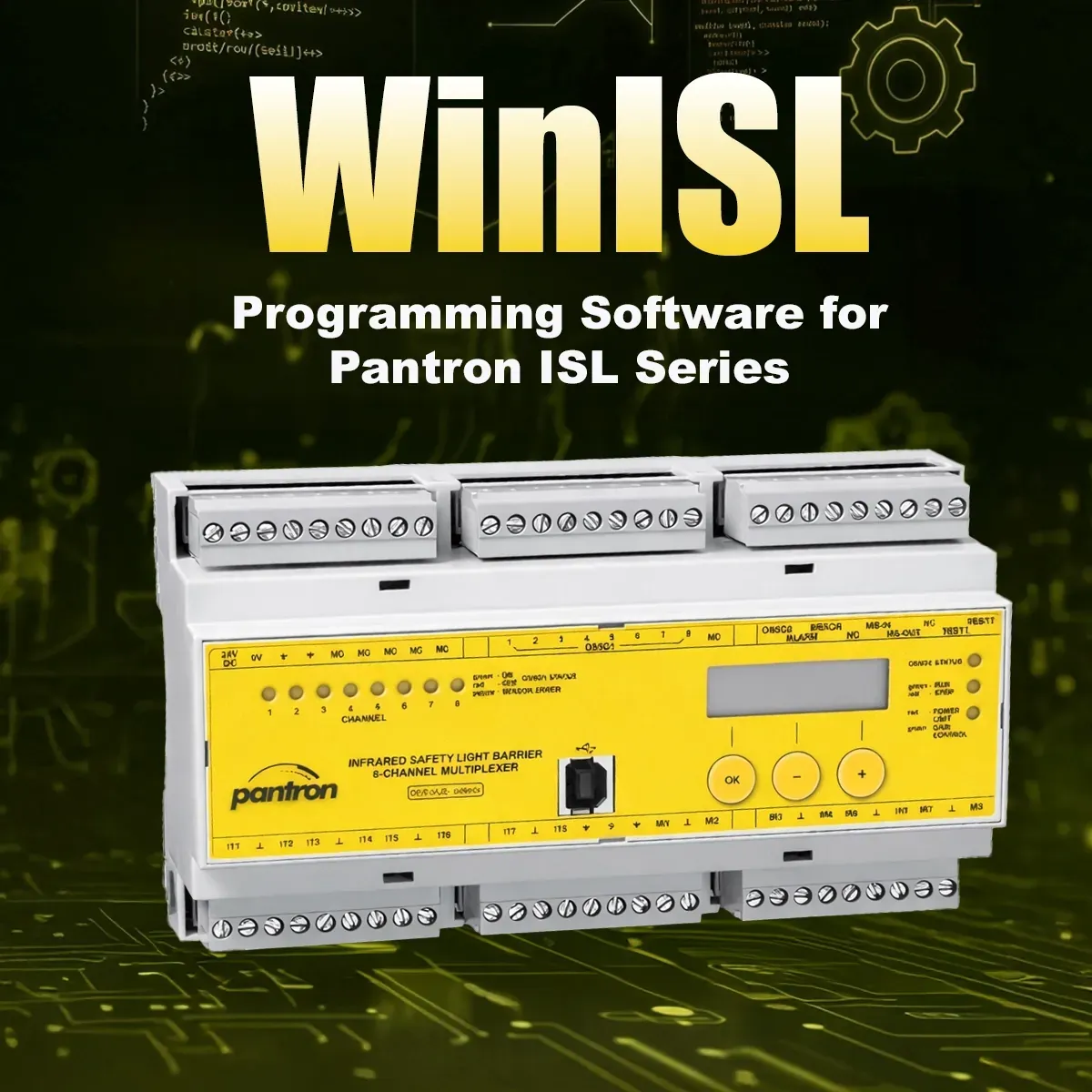

WinISL is Pantron's Windows-based configuration and monitoring tool for the ISL-8000 safety light barrier. Connected via USB using the built-in interface, it provides full access to user settings, live device state monitoring, and diagnostic tests. WinISL is portable — no setup program required — and is free to use for all owners of Pantron ISL-series devices.

Download WinISL v1.1 Download USB Driver (FTDI)

WindowsUSBFreePortable — no installerISL-8000

Key Features

Read and modify all ISL user settings from a Windows PC.
Live device-state display for real-time monitoring of the ISL-8000.
Built-in diagnostic test functions to verify safety light barrier performance.
Portable application — no installer, no Windows registry entries required.
No internet access, Java, DirectX, or .NET Framework needed.
USB connection using the ISL-8000's built-in interface and FTDI VCP driver.
Stores program settings in a local .ini file created on first launch.

Compatible Devices

ISL-8000 — optoelectronic protective device (BWS), Type 2 per EN 61496-1/2.

WinISL uses a USB connection via the FTDI FT232R USB UART VCP driver, which emulates a COM port on your system. Install the included FTDI driver before connecting the ISL-8000 for the first time. If a VCP driver is already installed, you may use your existing version.

Software Version and Included Files

WinISL v1.1 (Current)
File	WinISL_1_1_0.exe
Build	1.1.0
Compatible devices	ISL-8000
Download	WinISL_1_1_0.exe

Included Files
WinISL_1_1_0.exe	Main application (portable)
CDM 2.04.16.exe	FTDI VCP USB driver installer
WinISL1_1_de.chm	German help file
readme.txt	Release notes and usage guidance

WinISL is a portable application. Extract the contents to a folder of your choice (e.g. C:\WinISL or any folder outside of Program Files). No installer is needed — simply run the .exe after installing the FTDI USB driver. A .ini settings file is created automatically on first launch.

System Requirements and Installation

Requirement	Details	Notes
Operating system	Windows NT or newer	32-bit or 64-bit
Communication port	USB port	FTDI FT232R VCP driver required
USB driver	CDM 2.04.16.exe (included)	Install before first connection; install only once
Installation	Extract files — no setup program	No internet connection, registry entries, or runtime libraries required
Uninstall	Delete extracted files and WinISM.ini	Device settings files (*.set) can also be removed

For driver updates, alternate operating systems, or uninstall instructions visit ftdichip.com/Drivers/VCP.htm. If an existing VCP driver is already installed, no reinstallation is necessary.

Terms of Use

WinISL may be used at no cost for owners of Pantron ISL-series safety light barrier systems.
There is no guarantee for the correctness of device states displayed by WinISL — the displays and switching outputs of the ISL device itself are authoritative.

Please follow the ISL operating instructions included with your device for all installation and configuration guidance.

Important Wiring Warning

The minus terminal of the ISL device supply voltage is internally connected to the GND pin of the USB port.
Ensure there is no voltage difference between the 24 V DC minus supply and the PC's frame ground.
For laptops, use a galvanically isolated AC adapter or run on battery power.
If unsure, do not connect the ISL device to your computer. Pantron Instruments excludes all warranties for damages due to electric stray currents.
