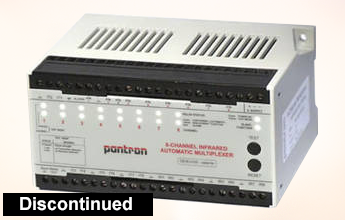

IMX-A831 Infrared Photoelectric Multiplexer

Manufacturer: Pantron Instruments, GmbH
Category: Infrared Photoelectric Multiplexers

8-channel multiplex amplifier with automatic gain setting. The PANTRON multiplex process guarantees a strict channel separation, even if the eight light barriers are mounted very closely. Two programmable level settings allow the multiplexer to be adjusted to overcome distance and other conditions.

The Master/Slave operation makes it possible to synchronize several multiplex amplifiers. This feature allows the light barrier to utilize more than eight beams.

Features and Specifications

  • Detection range up to 25 m (82ft)
  • Transmit power for each channel has automatic adjustment
  • Test function to check installation and signal quality
  • One transistor output NPN/PNP for each channel
  • Switching mode light / dark selectable for each channel
  • 2 different switchable basic transmit levels
  • Master-slave mode
Technical Data at +68 °F
Supply voltage see "Available Types"
Operating basis modulated IR light
Transmit power automatic adjustment
Transmit frequency 4.0 kHz
Switching function light / dark, switchable
Basic transmit level low1 / high1, switchable
Switching delay -
Transistor Output 8 x NPN/PNP
   Max. load 100 mA, 30 VDC
   Switching frequency 15 Hz
Alarm output pnp, 24 V DC
   Max. load  AC: 5 mA, DC: 100 mA
Housing material plastic
Protection class IP 20
Operation temperature -13 °F ... +140 °F
Available Types
Part number
IMX-A831/230VAC
IMX-A831/115VAC
IMX-A831/24VAC
IMX-A831/24VDC
Approvals

Notifications

The operation of infrared multiplexer IMX... is not authorized for applications where the safety of a person depends on the device function.
