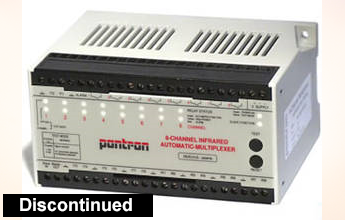

IMX-A842 Infrared Photoelectric Multiplexer

Manufacturer: Pantron Instruments, GmbH
Category: Infrared Photoelectric Multiplexers

8-channel multiplex amplifier with manual gain setting. The PANTRON multiplex process guarantees a strict channel separation, even if the eight light barriers are mounted very closely. Four level settings allow the multiplexer to be adjusted to overcome distance and other conditions.

The Master/Slave operation makes it possible to synchronize several multiplex amplifiers. This feature allows the light barrier to utilize more than eight beams.

Features and Specifications

  • Detection range up to 25 m (82ft)
  • Transmit power for each channel has automatic adjustment
  • Test function to check installation and signal quality
  • One relay output for each channel
  • Switching mode light / dark selectable for each channel
  • 4 different basic transmit levels
  • Master-slave mode
Technical Data at +68 °F
Supply voltage see "Available Types"
Operating basis modulated IR light
Transmit power automatic adjustment
Transmit frequency 4.0 kHz
Switching function light / dark, switchable
Basic transmit level low1 / low2 / high1 / high2
Switching delay -
Relay Output 8 x NO
   Max. load 100 mA, 30 VDC
   Switching frequency 15 Hz
Alarm output pnp, 24 V DC
   Max. load  AC: 5 mA, DC: 100 mA
Housing material plastic
Protection class IP 20
Operation temperature -13 °F ... +140 °F
Available Types
Part number
IMX-A842/230VAC
IMX-A842/115VAC
IMX-A842/24VAC
IMX-A842/24VDC
Approvals

Notifications

The operation of infrared multiplexer IMX... is not authorized for applications where the safety of a person depends on the device function.
