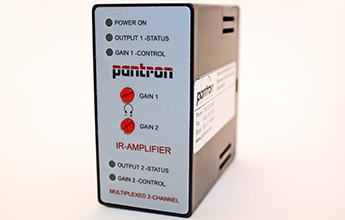

IMX-N23 Infrared Photoelectric Multiplexer

Manufacturer: Pantron Instruments, GmbH
Category: Infrared Photoelectric Multiplexers

2-channel multiplex amplifier with manual gain setting. The PANTRON multiplex process guarantees a strict channel separation, even if the two light barriers are mounted very closely. Two level settings allow the multiplexer to be adjusted to overcome distance and other conditions. Selectable multiplex speed offers an increase of range and penetration at slow speed or respectively a shorter range at faster speed.

Features and Specifications

  • Detection range up to 30 m (98ft)
  • Sensitivity for each channel adjustable with potentiometer
  • One transistor output NPN / PNP for each channel
  • System power 20% / 100 % switchable
  • Switching mode light / dark selectable for each channel
  • Multiplex speed 16 ms / 8 ms switchable
Technical Data at +68 °F
Supply voltage see "Available Types"
Operating basis modulated IR light
Transmit power manual adjustment
Transmit frequency 4.0 kHz
Switching function light / dark, switchable
Basic transmit level 20% / 100% switchable
Multiplex speed 16 ms / 8 ms switchable
Switching delay -
Transistor output 2 x npn / pnp
   Max. load 30 mA, 30 VDC
   Switching frequency 31 Hz
Alarm output -
   Max. load   -
Housing material plastic
Protection class IP 40
Operation temperature -13 °F ... +140 °F
Available Types
Part number


The operation of infrared multiplexer IMX... is not authorized for applications where the safety of a person depends on the device function.
