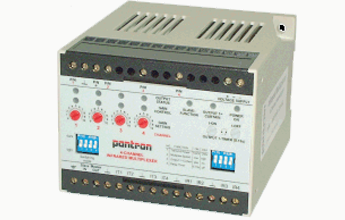

IMX-N430 Infrared Photoelectric Multiplexer

Manufacturer: Pantron Instruments, GmbH
Category: Infrared Photoelectric Multiplexers

4-channel multiplex amplifier with manual gain setting. The PANTRON multiplex process guarantees a strict channel separation, even if the four light barriers are mounted very closely. Two level settings allow the multiplexer to be adjusted to overcome distance and other conditions.

Switch-on and switch-off delay time for channel one can be activated. The Master/Slave operation makes it possible to synchronize several multiplex amplifiers. This feature allows the light barrier to utilize more than four beams.

Features and Specifications

  • Detection range up to 25 m (82ft)
  • Sensitivity for each channel adjustable with potentiometer
  • One transistor output NPN/PNP for each channel
  • Adjustable switch-ON and switch-OFF delay for channel one
  • System power 20% / 100 % switchable
  • Switching mode light / dark selectable for each channel
  • Multiplex speed 32 ms / 16 ms switchable
  • Master-slave mode
  • Light curtain function
Technical Data at +68 °F
Supply voltage see "Available Types"
Operating basis modulated IR light
Transmit power manual adjustment
Transmit frequency 4.0 kHz
Switching function light / dark, switchable
Basic transmit level 20% / 100% switchable
Switching delay 0 ... 15 seconds
Transistor Output 4 x NPN/PNP
   Max. load 20 mA, 30 VDC
   Switching frequency 28 Hz
Alarm output -
   Max. load -
Housing material plastic
Protection class IP 20
Operation temperature -13 °F ... +140 °F
Available Types
Part number
IMX-N430/230VAC
IMX-N430/115VAC
IMX-N430/24VAC
IMX-N430/24VDC
Approvals

Notifications

The operation of infrared multiplexer IMX... is not authorized for applications where the safety of a person depends on the device function.
