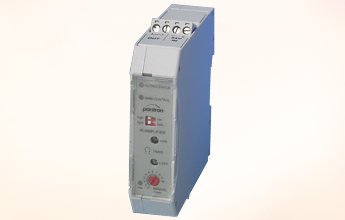

ISM-1535 Infrared Photoelectric Amplifier

Manufacturer: Pantron Instruments, GmbH
Category: Infrared Photoelectric Amplifiers

ISM-1500 series optosensors are cost-efficient devices for simple light barrier applications. In consequence of the standard size of 22,5 mm, the low profile and the plug-in connections these devices are easy to mount and space-saving.

The amplifiers are used for detecting objects in machines or production facilities. The whole system consists of one amplifier combined with infrared transmitter and receiver. It is characterised by its long detection range and extreme dirt resistance where traditional photo-electric light barriers reach their limits. Modulated light is the reason for additional safety regarding external light, interfering impulses and other light barriers.

Power settings can be changed by potentiometer and controlled by a green gain LED. The status of light pathway is reported via potential-free switching output to units downstream such as a SPS.

Features and Specifications

  • Detection range up to 70 m (230ft)
  • Sensitivity adjustable with potentiometer
  • Supply voltage 24 V AC/DC
  • Light/Dark switching
  • Two basic transmit levels
  • Adjustable on/off delay timer
  • Semiconductor relay output
  • Transmitter and receiver connections are short circuit proof
  • Plug connections
  • Mounting for DIN rail
Technical Data at +68 °F
Supply voltage see "Available Types"
Operating basis modulated IR light
Transmit power manual adjustment
Transmit frequency 4.0 kHz
Switching function light/dark
Basic transmit level high/low
Switching delay 0 ... 10 seconds
Switching output Potential-free normally open contact (semiconductor relay), short-circuit proof
   Max. load 60 V AC / DC, 100 mA
   reaction time 36 ms
Alarm output -
   Max. load -
Analog output -
Test input -
Housing material Polyamide, light grey
Protection class IP 20
Operation temperature -13 °F ... +122 °F
Available Types
Part number


The operation of infrared amplifier ISM... is not authorized for applications where the safety of a person depends on the device function.
