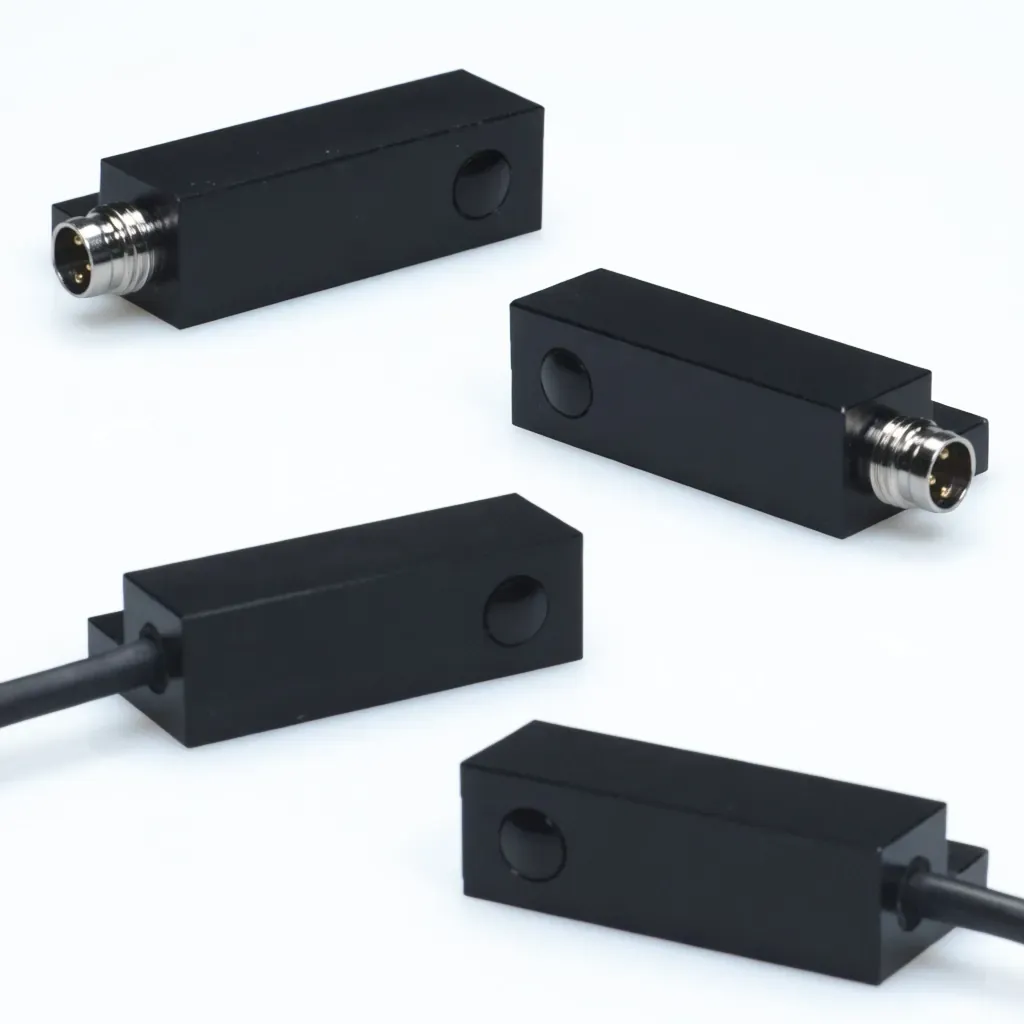

Pantron AS sensor heads are designed for dependable infrared photoelectric sensing in machinery and plant environments where compact installation, stable alignment, and strong contamination tolerance are important. Its rectangular wall-mount housing with lateral beam direction makes it well suited for space-constrained areas, while the receiver design incorporates a built-in preamplifier and daylight compensation to help maintain consistent performance in demanding operating conditions.
The AS range includes transmitter and receiver heads for use with Pantron infrared amplifier series, excluding ISL. Each active sensing channel requires one transmitter and one receiver. AS transmitters are offered in the standard power version, while receiver variants are available with either cable or M8 plug connection for straightforward integration into machine designs.
Its compact rectangular housing supports simple wall mounting and a lateral beam path, making the AS family a practical solution for packaging systems, handling equipment, wash environments, and other applications where reliable detection must be maintained despite dust, moisture, vibration, or limited mounting space.
| Transmitter wavelength | 880 nm |
|---|---|
| Opening angle / transmit power | 10° / 40 mWsr |
| Connection | 2-pin PVC cable 3-pin circular plug M8 |
| Housing material | Polyoxymethylene (POM) |
| Protection class | IP67 |
| Operating temperature | -25 °C to +65 °C (-13 °F to +149 °F) |
| Storage temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Vibration | 10 to 55 Hz, 1.5 mm |
| Shock | 30 g |
| Receiver wavelength | 880 nm |
|---|---|
| Opening angle | 25° |
| Light immunity | 60,000 Lux |
| Connection | Shielded PVC cable 3-pin circular plug M8 |
| Housing material | Polyoxymethylene (POM) |
| Protection class | IP67 |
| Operating temperature | -25 °C to +65 °C (-13 °F to +149 °F) |
| Storage temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Vibration | 10 to 55 Hz, 1.5 mm |
| Shock | 30 g |
| Version | Order Code |
|---|---|
| Transmitter AS, 5 m cable * | IT-AS-5 |
| Transmitter AS, 15 m cable * | IT-AS-15 |
| Transmitter AS, 3-pin circular plug M8 | IT-AS-3QD |
| Receiver AS, 5 m cable * | IR-AS-5 |
| Receiver AS, 15 m cable * | IR-AS-15 |
| Receiver AS, 3-pin circular plug M8 | IR-AS-3QD |
* Other cable lengths are available upon request.
