Pantron power supplies are designed for high power opto sensors in the ISM series and for compact opto sensors where 115 V AC or 230 V AC line power is available. The range is intended to provide a straightforward interface between wide-range AC mains power and stabilized DC output for sensor systems and associated control electronics. The product family uses modern switching power supply technology for efficient operation, wide input tolerance, and dependable output stability. According to Pantron, the units accept 95 to 265 V AC input, provide galvanic isolation through a safety transformer to EN 61558, and include controlled start-up behavior so a primary-side fuse is not required.

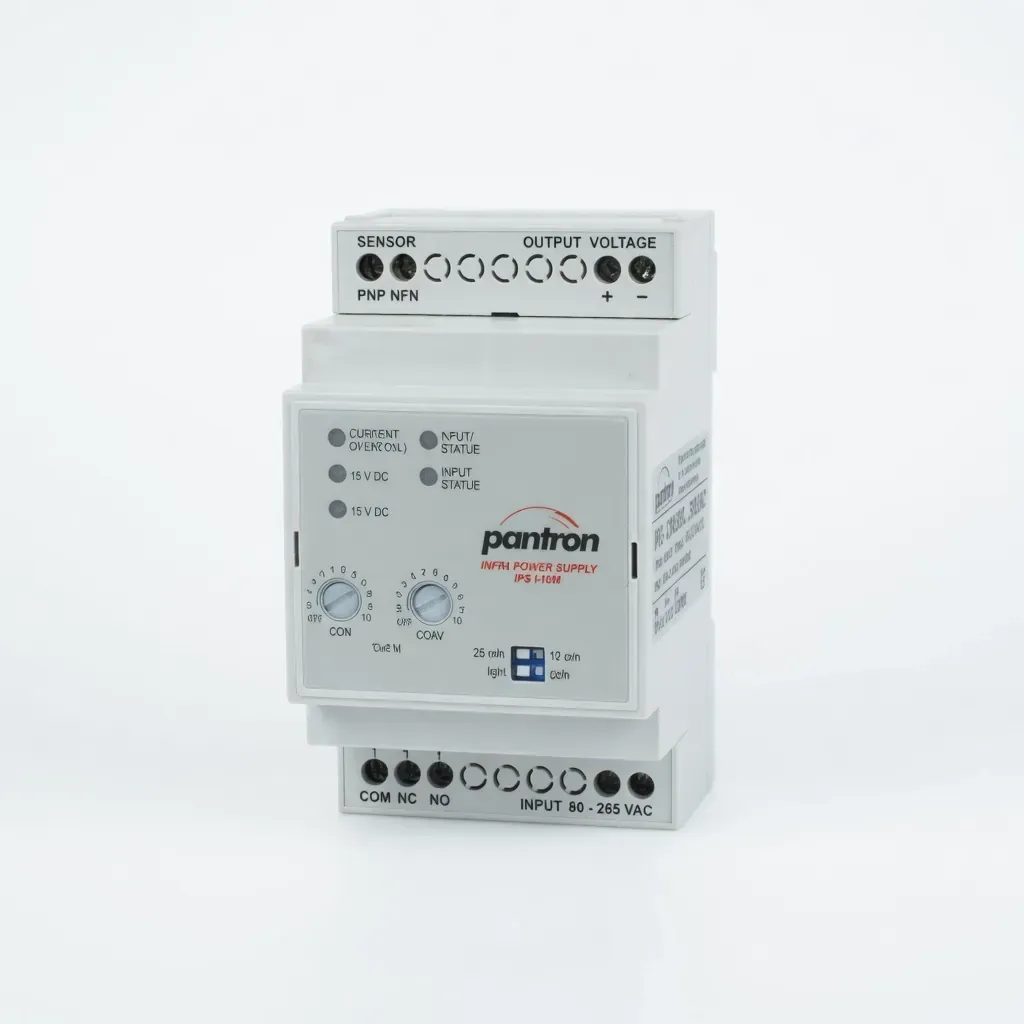

Power supply unit with wide-range 95 to 265 V AC input and a fixed 24 V DC output rated at 350 mA for Pantron sensor systems.
Wide-range power supply with 95 to 265 V AC input and selectable 15 or 24 V DC output, rated at 400 mA or 650 mA depending on configuration.
These devices are intended for industrial sensing and control applications. They are not designed for duties where personal safety depends directly on product function.
