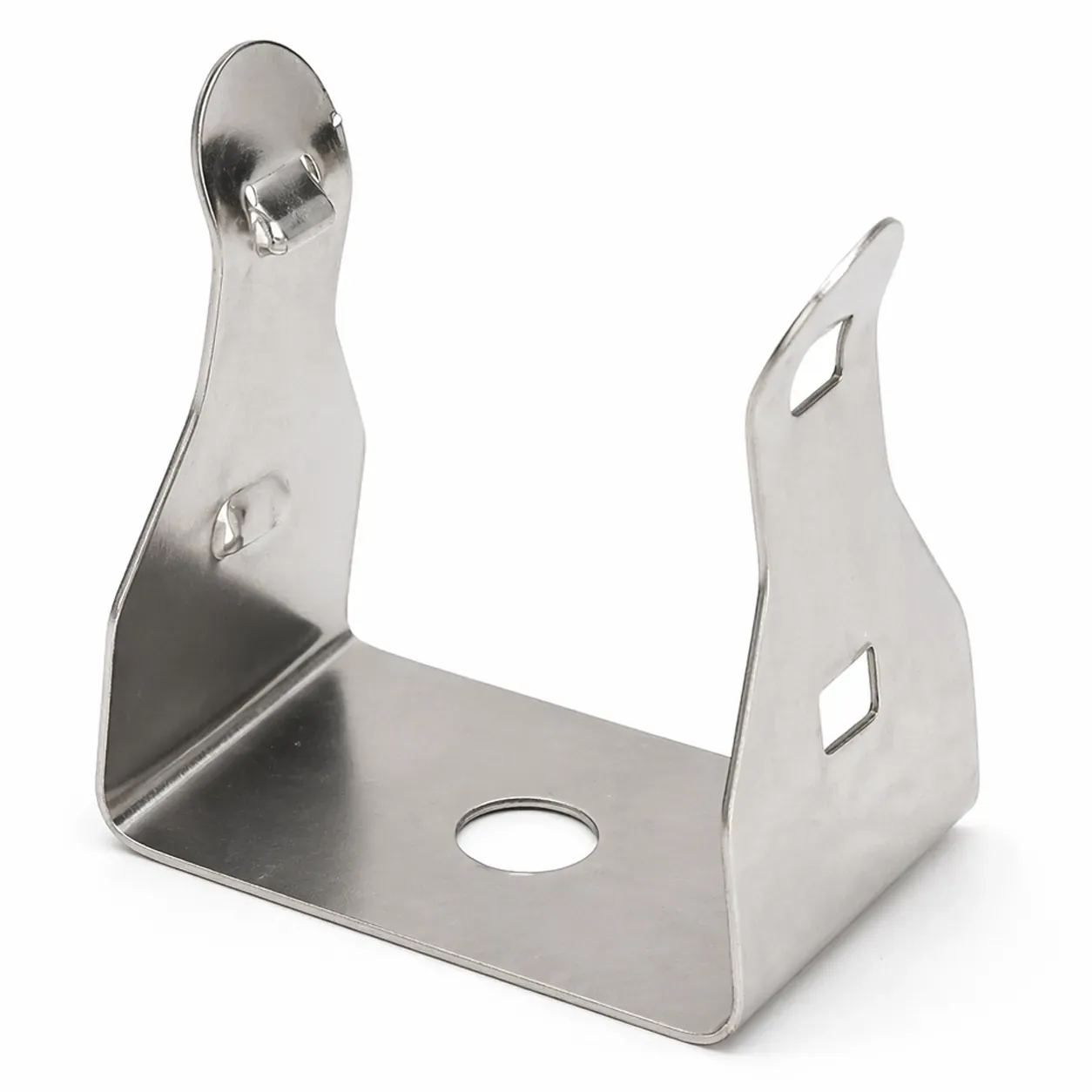

PANTRON RTC 11 Retaining Clip

RTC11

The RTC11 retaining clip is used with the Pantron DIN socket system to help hold plug-in amplifiers securely in place. It is especially recommended when vibration is present and for all PSU-N power supply units, which should be secured because of their greater weight.

DIN-socket accessory Anti-vibration retention Simple retrofit For plug-in amplifiers PSU-N recommended Compact metal clip

Key Features

Retaining clip for Pantron DIN socket assemblies.
Secures plug-in amplifiers against vibration.
Mounted under the DIN socket as a mechanical retention aid.
Strongly recommended for all PSU-N power supply units because of their weight.
Supports more reliable long-term plug engagement in dynamic installations.
Simple accessory that improves mechanical stability without changing wiring.

Best Fit Applications

Machine-mounted control panels exposed to vibration or shock.
Socketed Pantron amplifier installations that need extra mechanical security.
Installations using heavier plug-in PSU-N power supply units.
Retrofit projects where plug-in retention should be improved without redesigning the cabinet.

RTC11 is a small but valuable accessory wherever long-term reliability of a plug-in DIN socket assembly matters.

Technical Specifications

Accessory type	Retaining clip
Primary function	Secures amplifier against vibration
Used with	DIN socket assemblies
Mounting position	Under the socket

Recommended for	All PSU-N power supply units
Reason for recommendation	Higher device weight
Mechanical purpose	Improved retention of plug-in unit
Order code	RTC 11

Ordering Information

Description	Installation / notes	Order code
Retaining clip for DIN socket	Used to secure a plug-in amplifier against vibrations; mounted under the socket; recommended for all PSU-N units due to greater weight	RTC 11

On mobile, this table will side-scroll when needed so the full installation note remains readable.

Installation Notes

Install the clip beneath the DIN socket before finalizing the assembly.
Use it wherever vibration could loosen or stress the plug-in amplifier connection.
Especially include RTC11 when mounting a PSU-N plug-in power supply unit.

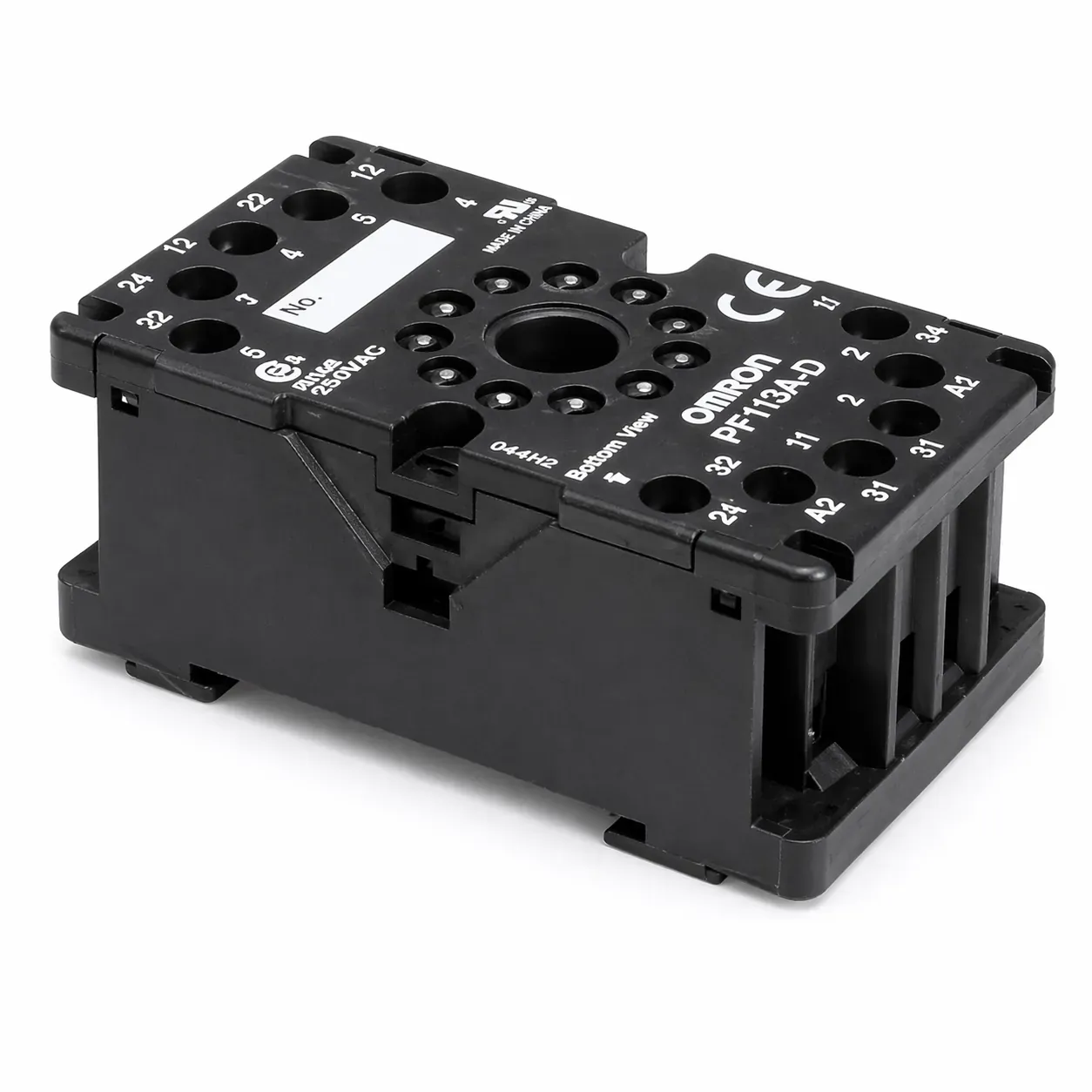

Combine it with the ISO-1 socket for a more robust modular mounting approach.

Because the RTC11 is purely mechanical, it adds retention without affecting amplifier wiring or control behavior.

Why It Matters

Helps maintain a stable plug connection during machine movement and vibration.
Reduces the chance of intermittent faults caused by mechanical loosening.
Supports better reliability in field-installed, serviceable socket systems.
Provides a simple low-cost upgrade to a DIN socket based Pantron installation.

Even though it is a small hardware part, RTC11 directly supports the long-term dependability of socket-mounted Pantron devices.
