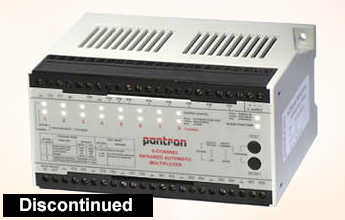

IMX-A830 Infrared Photoelectric Multiplexer

Manufacturer: Pantron Instruments, GmbH
Category: Infrared Photoelectric Multiplexers

8-channel multiplex amplifier with automatic gain setting. The PANTRON multiplex process guarantees a strict channel separation, even if the eight light barriers are mounted very closely. Two level settings allow the multiplexer to be adjusted to overcome distance and other conditions.

Switch-on and switch-off delay time for each channel can be activated independently. The Master/Slave operation makes it possible to synchronize several multiplex amplifiers. This feature allows the light barrier to utilize more than eight beams.

Features and Specifications

  • Detection range up to 25 m (82ft)
  • Transmit power for each channel has automatic adjustment
  • Test function to check installation and signal quality
  • One transistor output NPN/PNP for each channel
  • Programmable switch-ON and switch-OFF delay for each channel
  • Switching mode light / dark programmable
  • 2 different basic programmable transmit levels
  • Master-slave mode
Technical Data at +68 °F
Supply voltage see "Available Types"
Operating basis modulated IR light
Transmit power automatic adjustment
Transmit frequency 4.0 kHz
Switching function light / dark, programmable
Basic transmit level low1 / high1, programmable
Switching delay 0 ... 7 seconds programmable
Transistor Output 8 x NPN/PNP
   Max. load 100 mA, 30 VDC
   Switching frequency 15 Hz
Alarm output pnp, 24 V DC
   Max. load  AC: 5 mA, DC: 100 mA
Housing material plastic
Protection class IP 20
Operation temperature -13 °F ... +140 °F
Available Types
Part number
IMX-A830/230VAC
IMX-A830/115VAC
IMX-A830/24VAC
IMX-A830/24VDC
Approvals

Notifications

The operation of infrared multiplexer IMX... is not authorized for applications where the safety of a person depends on the device function.
