PanBox Protective Enclosures for Pantron Photoelectric Amplifiers and Multiplexers

Manufacturer: Pantron Instruments, GmbH
Category: Protective Enclosures

PanBox protective enclosures are recommended for mounting Pantron amplifiers in humid or dirty environments or applications located outdoors. There are various sizes for different types of amplifiers and pre-assembled PG glands for sensor cables, current supply, and circuit lines. PanBoxes are equipped with DIN rail.

Features and Specifications

  • Impact resistant polycarbonate
  • Transparent top cover
  • Protection class IP66
  • Cable gland M12 and M16
Technical Data at +68 °F
Housing material top cover Polycarbonate
Housing material bottom cover Glass fibre-reinforced polycarbonate
Color top cover Transparent
Color bottom cover Gray
Gasket Polyurethane
Ingress protection (EN 60529) IP 66
Impact resistance (EN 50102) IK 08
Enclosure flammability rating UL94-5V
Ambient temperature -40° C ... +120 °C (-40 °F ... +248 °F)
Permanent temperature +80 °C (+176 °F)
Dimensional Drawings

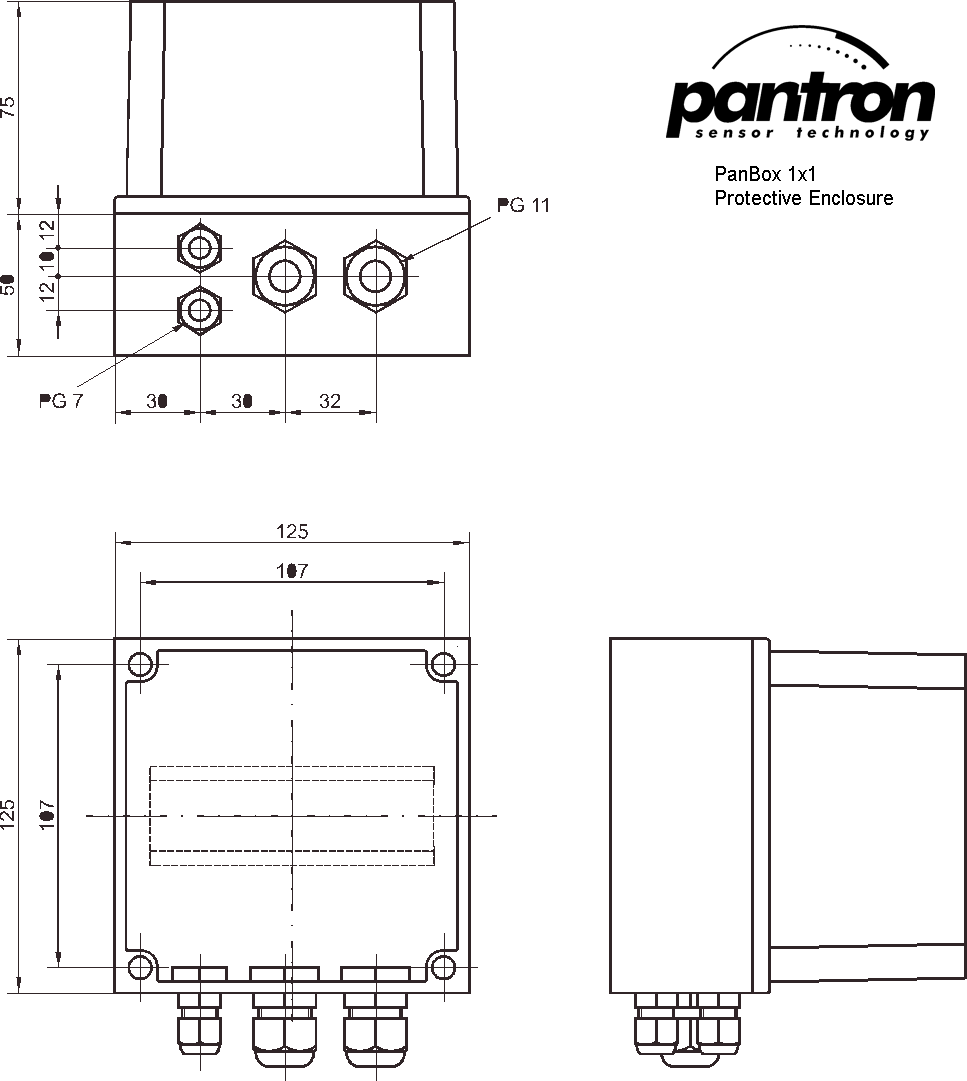

PanBox 1x1    (for 1 x single-channel)
PanBox 1x2    (for 1 x dual-channel)
PanBox 3x1    (for 3 x single-channel)

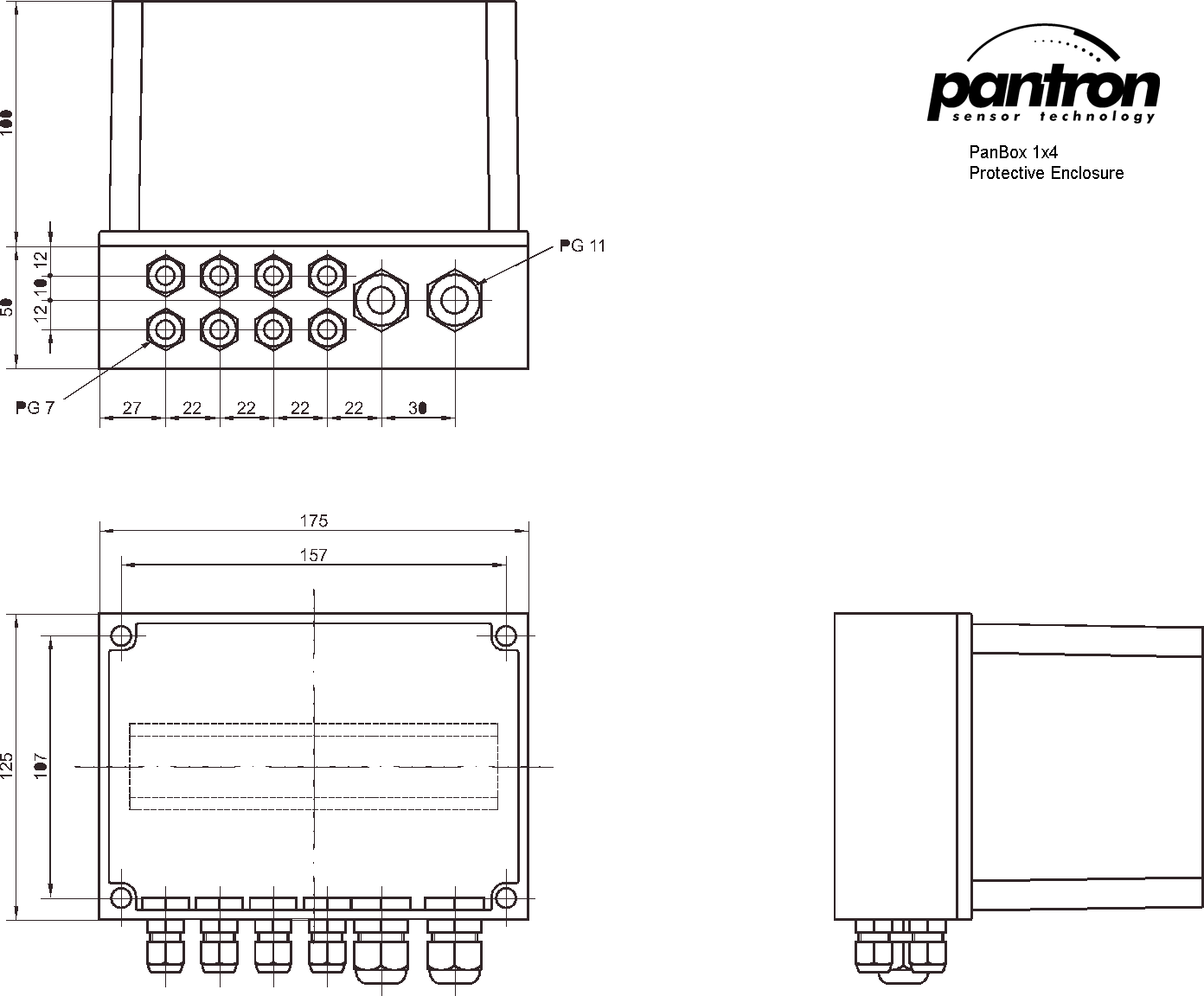

PanBox 1x4    (for 1 x four-channel)
PanBox 1x8    (for 1 x eight-channel)
Order code Suitable for the amplifiers below Dimensions W x H x D
PanBox 1x1 1 x single channel opto sensor ISG-N... or ISG-A... 130 x 130 x 125 mm
PanBox 1x2 1 x dual channel opto sensor IMX-N2... / IMX-N3... / IMX-A20... 130 x 130 x 125 mm
PanBox 3x1 3 x single channel opto sensor ISG-N... or ISG-A... 180 x 130 x 125 mm
PanBox 1x4 1 x 4-channel opto sensor IMX-N4... 180 x 130 x 150 mm
PanBox 1x8 1 x 8-channel opto sensor IMX-N8... / IMX-A8... 255 x 162 x 150 mm


The operation of enclosure PanBox... is not authorized for applications where the safety of a person depends on the device function.
