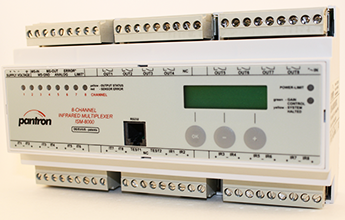

ISM-8000 Infrared Photoelectric Multiplexer

Manufacturer: Pantron Instruments, GmbH
Category: Infrared Photoelectric Multiplexers

8-channel multiplex amplifier with manual and automatic gain settings. The PANTRON multiplex process guarantees a strict channel separation, even if the eight light barriers are mounted very closely. Two manual and four automatic level settings allow the multiplexer to be adjusted to overcome distance and other conditions.

Features and Specifications

  • Detection range up to 30 m (98ft)
  • Sensitivity for each channel adjustable automatically or through programming
  • One Semiconductor-relay output for each channel
  • Switching mode light / dark selectable for each channel
  • Sensor failure monitoring
  • Test and Diagnostic function
  • Analog output
  • LCD display
  • PC interface
Technical Data at +68 °F
Supply voltage see "Available Types"
Operating basis modulated IR light
Transmit frequency 4.0 kHz
Switching function light / dark, switchable
Basic transmit level 2 manual / 4 automatic levels
Multiplex speed 18 ms
Switching delay -
Semiconductor-relay output 8 x 60V AC/DC short circuit proof
   Max. load 100 mA
   Switching frequency 20 Hz
Alarm / Error output pnp, 24 V DC
   Max. load 100 mA
Analog output 0...10 V DC or 10...0 V DC
Test input max. 30 V DC / 2 mA
Housing material NORYL (self-extinguishing)
Protection class IP 20
Operation temperature -13 °F ... +122 °F
Available Types
Part number
ISM-8000/24VDC (plug connection)
Approvals

Notifications

The operation of infrared multiplexer ISM... is not authorized for applications where the safety of a person depends on the device function.
