The IMX-A series is engineered for multi-channel photoelectric systems where sensors must be installed close together while maintaining reliable separation between channels. These high-power multiplex amplifiers combine long sensing range, strong resistance to dust and contamination, and automatic gain setting to help sustain dependable sensitivity across demanding industrial environments.
The IMX-A family is well suited for applications that require multiplexed sensing performance with stable detection and minimal interference between adjacent sensing channels. The automatic setting architecture helps maintain high sensitivity throughout the usable operating range, making the series a strong fit for compact installations, conveyor systems, packaging equipment, and other automation environments where multiple channels must operate reliably in close proximity.
Within the series, users can choose between 2-channel and 8-channel platforms, with either relay or transistor outputs and timer functionality where required. This gives the IMX-A range the flexibility to support both straightforward machine integration and more advanced control schemes that require timed switching or primary/secondary behavior.
| Model | Channels | Auto Levels | Relay Output | Transistor Output | Switching Delay | Primary / Secondary |
|---|---|---|---|---|---|---|
| IMX-A2023 | 2 | 4-level | — | PNP / NPN | — | — |
| IMX-A2024 | 2 | 4-level | ✓ | — | — | — |
| IMX-A2033 | 2 | 4-level | — | PNP / NPN | ✓ | — |
| IMX-A2034 | 2 | 4-level | ✓ | — | ✓ | — |
| IMX-A830 | 8 | 2-level | — | PNP / NPN | ✓ | ✓ |
| IMX-A840 | 8 | 2-level | ✓ | — | ✓ | ✓ |
All IMX-A models provide automatic gain setting with light/dark switching selection. 8-channel models include primary/secondary operation for coordinated multi-unit installations.

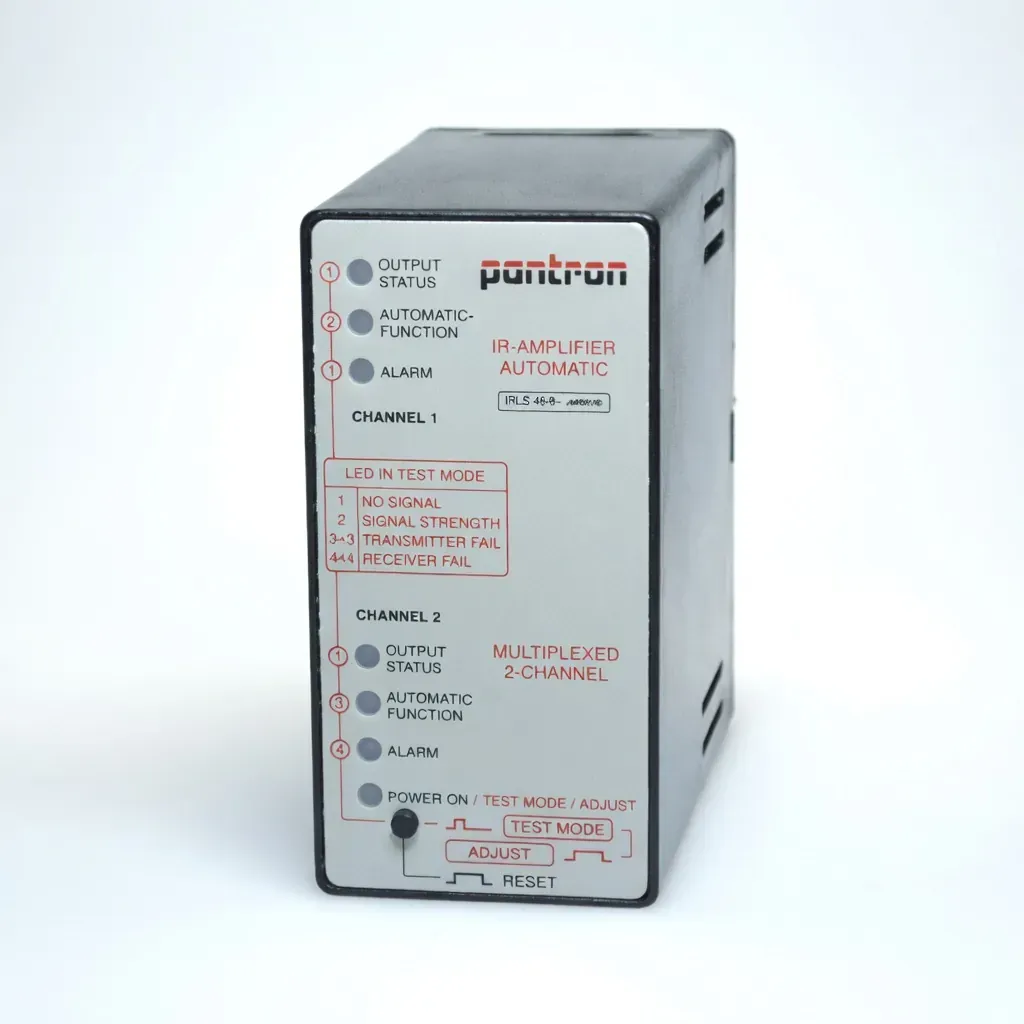

Dual-channel opto sensor with automatic 4-level setting, transistor output, and light/dark switching.
Dual-channel opto sensor with automatic 4-level setting, relay output, and light/dark switching.

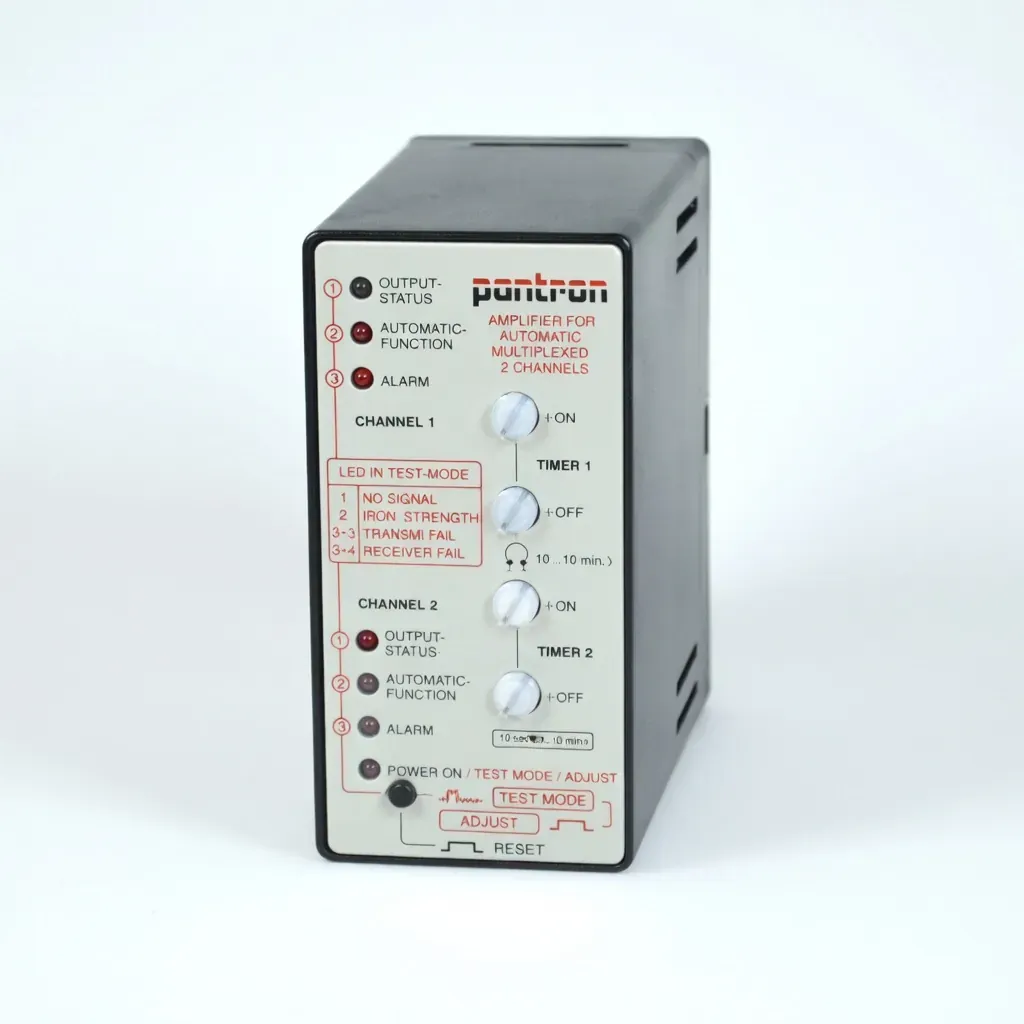

Dual-channel version with automatic 4-level setting, timer function, transistor output, and light/dark switching.
Dual-channel model with automatic 4-level setting, timer function, relay output, and light/dark switching.

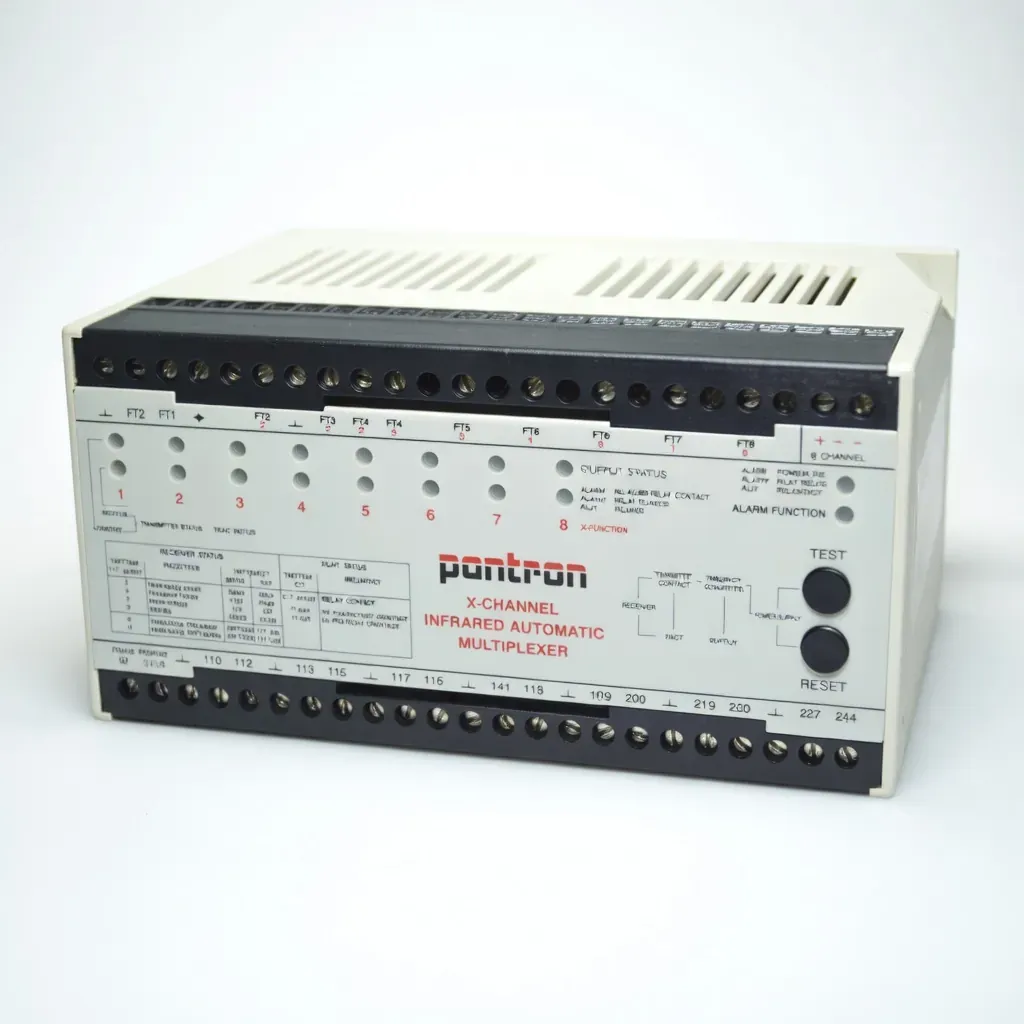

Eight-channel multiplex amplifier with automatic 2-level setting, timer, transistor output, and primary/secondary operation.

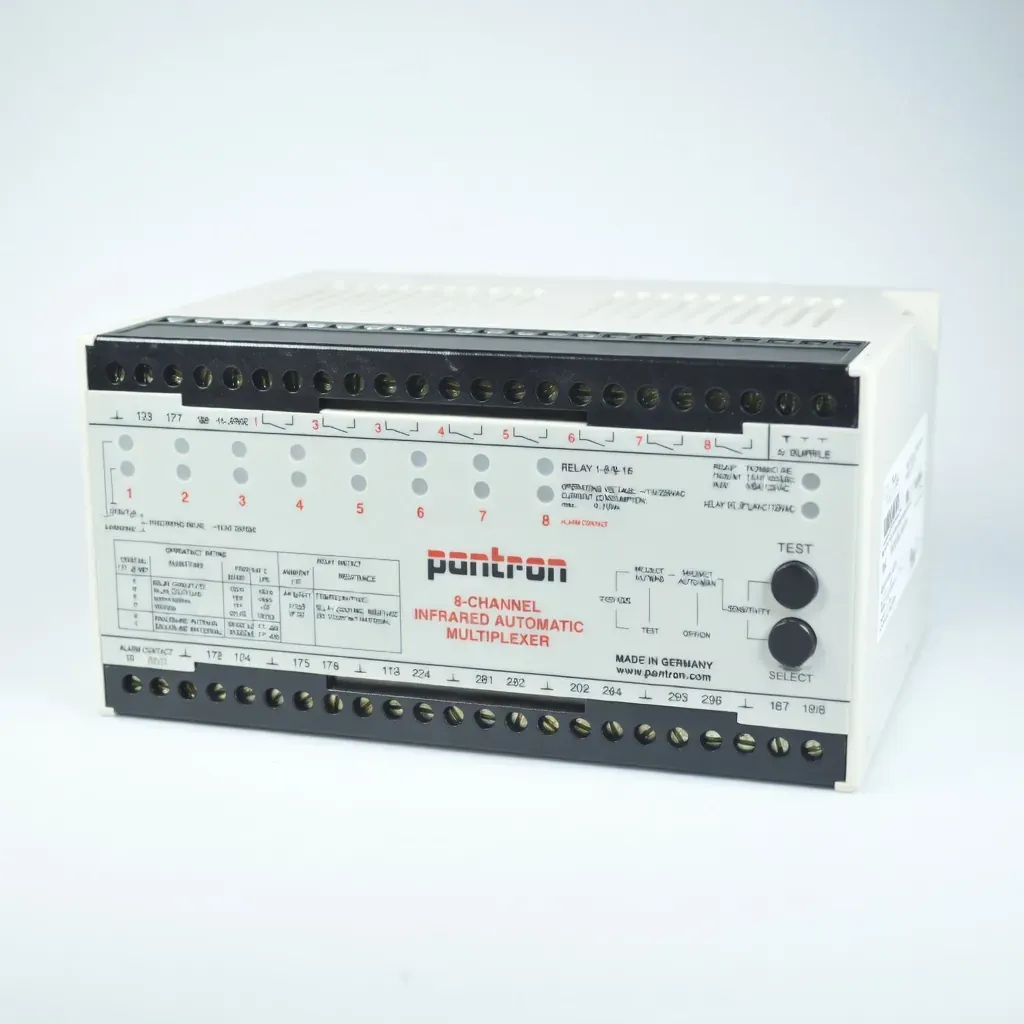

Eight-channel version with automatic 2-level setting, timer, relay output, and primary/secondary operation.
Share a few details below and our team will respond with recommended options, pricing, and lead time.
