Pantron protective glass and light shutters

PANTRONAccessory FamilyProtective Glass / Shutters

Protective Glass / Shutters

Pantron protective glass and light shutters are used to simplify mechanical installation and alignment of compatible sensors. The ISH1 and ISH2 brackets have M6 central fixing for P10 and TSP transmitters / receivers. The ISH10 version uses a Ø16 mm bore, and KB12 is used for sensor heads and compact opto sensors with M12 thread.

Sensor alignmentP10 / TSP / M12 support

Key Features

For sensor heads and compact opto sensors with M12 thread, including CLN / CLV and CSN / CSV types.
Protective glass shields protect sensor faces from mechanical damage and strong abrasion.
Light shutters reduce the effective beam diameter for detecting very small objects.
IR3 focuses the effective beam diameter to Ø1 mm when used on transmitter and receiver.
IR3G and IR4G combine light-shutter function with protective glass to help prevent clogging by fine dust or dirt.
Stainless-steel construction with an included O-ring seal.

Best Fit Applications

Protecting transmitter and receiver surfaces against abrasion from aggressive media.
Sandblasting, bulk solids, and sharp-edged particle environments.
Small-object detection where the standard beam diameter is too large.
Dusty installations where a light shutter with protective glass helps reduce bore clogging.

All apertures shown on the Pantron shutter page can be screwed onto sensors with M12 thread, and an O-ring seal is included.

Protective Glass and Shutter Options

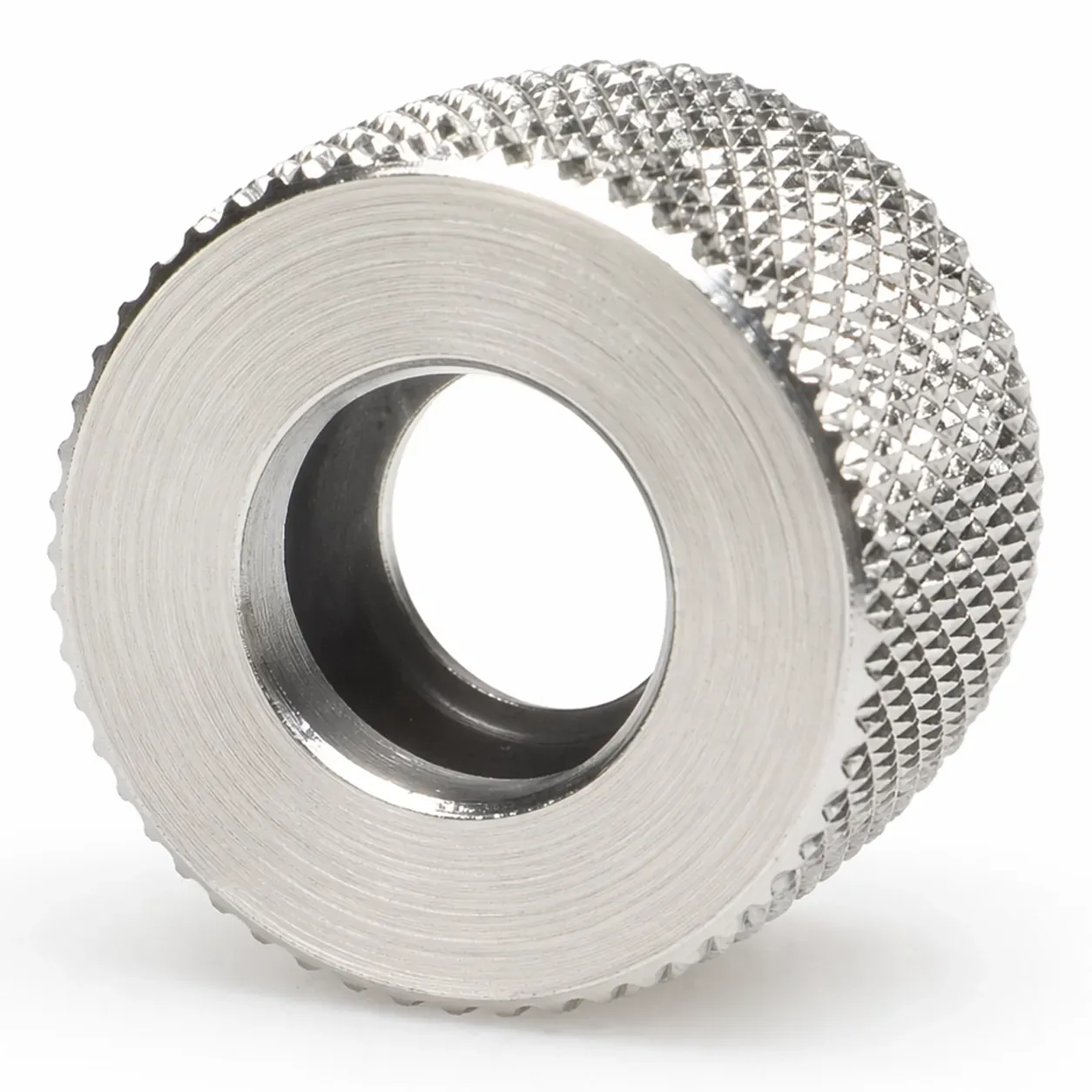

IR2

Protective glass shield for sensor heads with M12 thread.

Order code: IR2

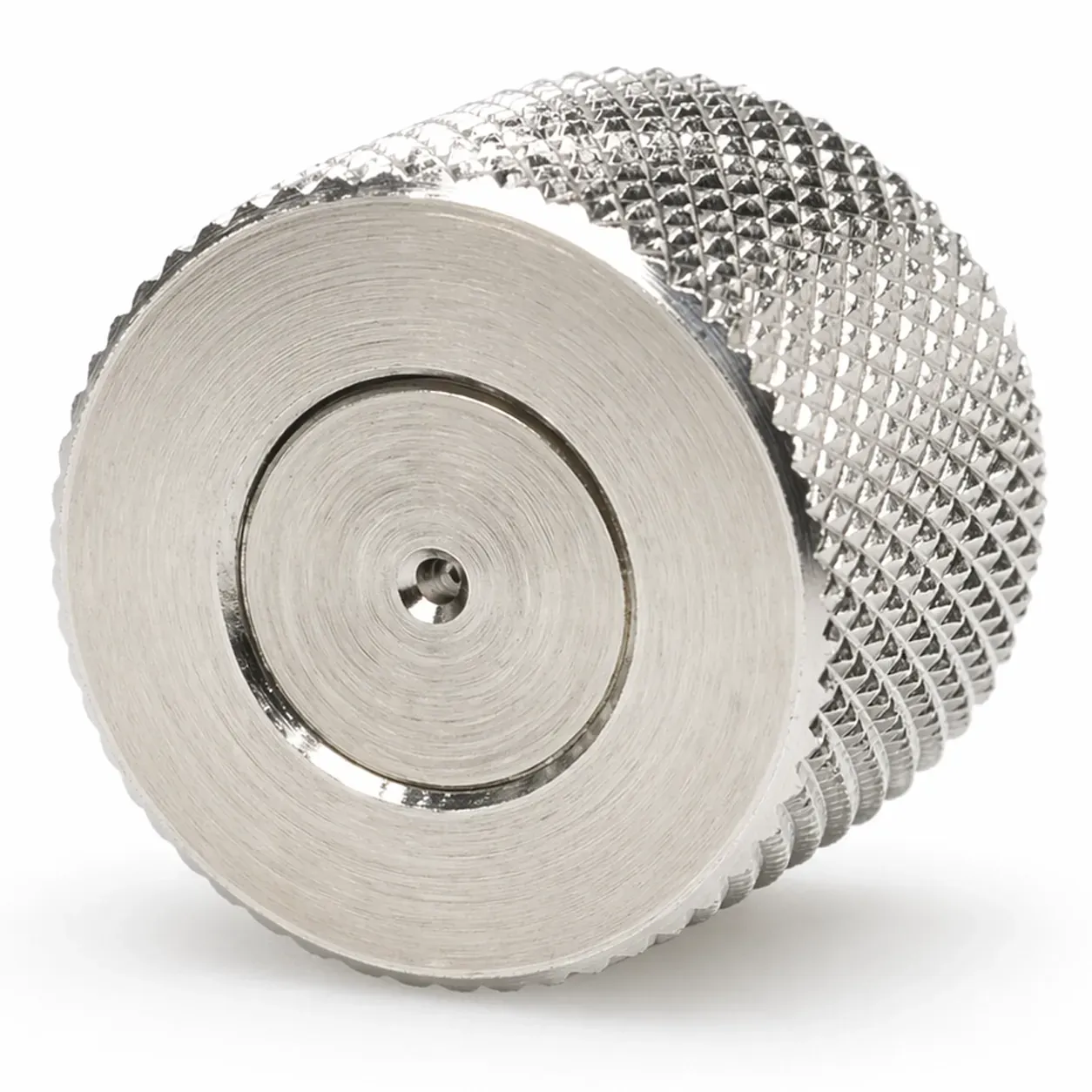

IR3

Light shutter Ø1 mm for sensor heads with M12 thread.

Order code: IR3

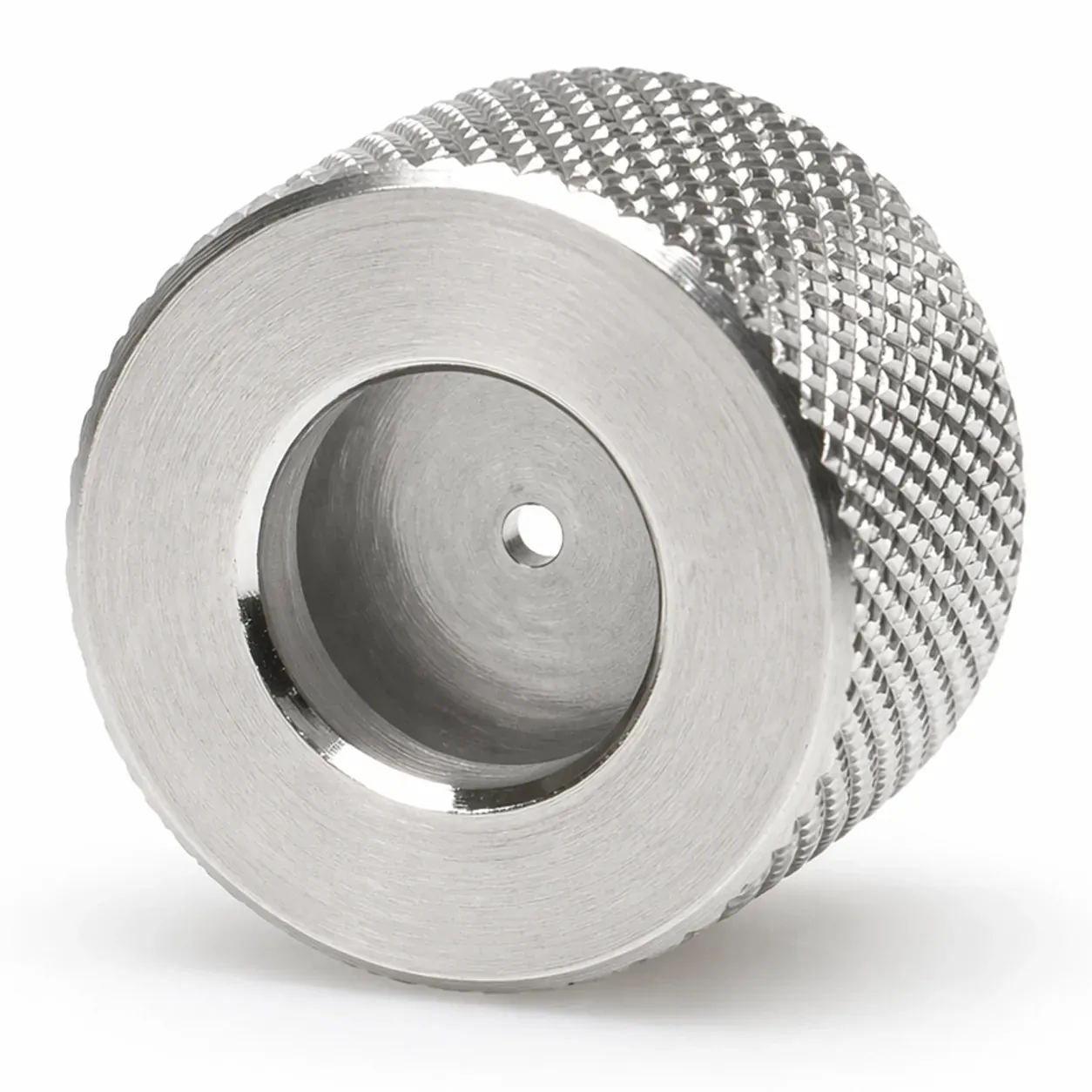

IR3G

Light shutter Ø1 mm with protective glass shield for sensors with M12 thread.

Order code: IR3G

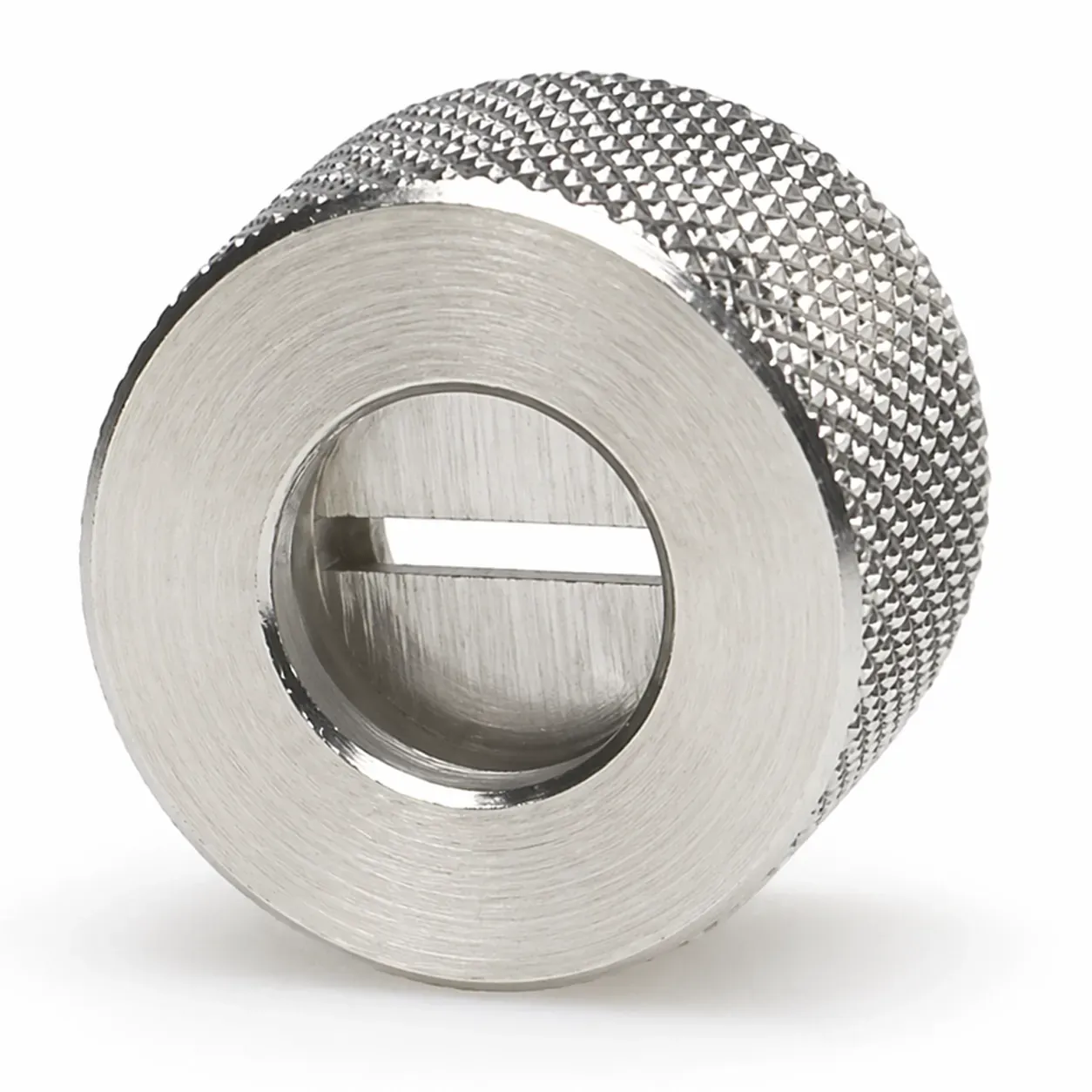

IR4G

Light shutter 8 x 1 mm with protective glass shield for sensors with M12 thread.

Order code: IR4G

Technical Overview

Accessory family	Protective glass shields and light shutters
Primary purpose	Sensor-face protection, beam reduction, and abrasion protection
Compatible thread	M12
Compatible sensor types	Sensor heads and compact opto sensors, including CLN / CLV and CSN / CSV

Material	Stainless steel
Seal	O-ring included
Small-object detection	Light shutters reduce the effective beam diameter
Dust protection option	Light shutters with protective glass help prevent clogging of the aperture bore

Ordering Information

Type	Description	Order code
Protective glass IR2	Protective glass shield for sensors with M12 thread	IR2
Light shutter IR3	Light shutter Ø1 mm for sensors with M12 thread	IR3
Light shutter with protective glass IR3G	Light shutter Ø1 mm with protective glass shield for sensors with M12 thread	IR3G
Light shutter with protective glass IR4G	Light shutter 8 x 1 mm with protective glass shield for sensors with M12 thread	IR4G

Selection Notes

Use IR2 when the main need is sensor-face protection against abrasion or mechanical damage.
Use IR3 when the main need is detecting very small objects with an effective Ø1 mm beam.
Use IR3G when Ø1 mm beam reduction and protective glass shielding are both required.
Use IR4G when an 8 x 1 mm shutter profile with protective glass is better suited to the target geometry.

Integration Notes

Install matching shutter or glass accessories on both transmitter and receiver when beam shaping is required.
Confirm that the sensor uses an M12 thread before selecting these accessories.
Use protective glass versions where abrasive media or fine dust could damage or clog the optical face.
Verify alignment after installation because light shutters intentionally narrow the effective beam path.
