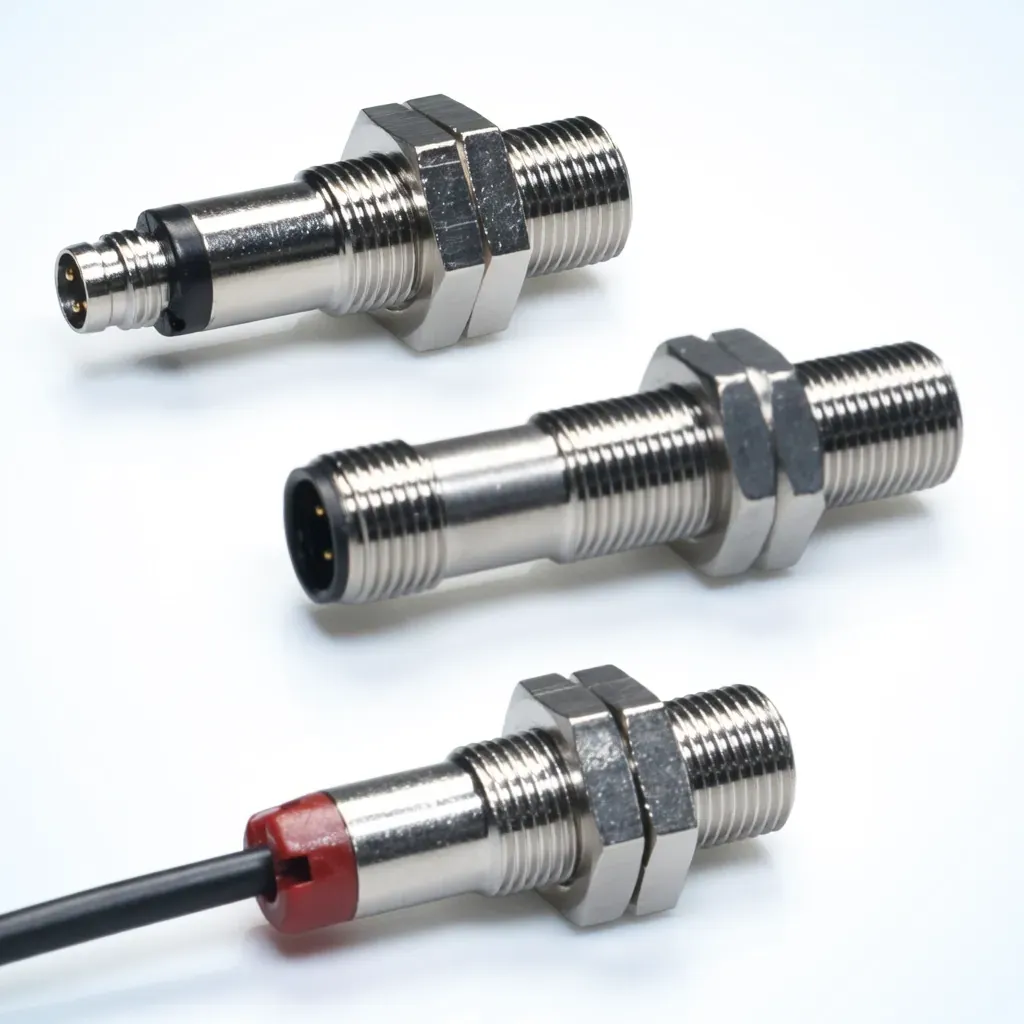

Pantron M12 sensors combine compact form factor, durable threaded metal housing, and strong resistance to contamination for dependable performance in harsh areas. These sensor heads are designed for Pantron photoelectric systems and are suitable for all Pantron amplifier series except ISL. Each sensing channel requires one transmitter and one receiver, with receiver models featuring an integrated preamplifier and daylight compensation to support stable operation under ambient light.
The M12 range includes infrared transmitter and receiver heads for machine builders and plant operators that need a compact cylindrical sensor with robust mechanical construction. Transmitter models are available in standard, high-power, and ITA versions, while receiver models are available with cable, 3-pin M8 circular plug, or 4-pin M12 circular plug options to support flexible system integration.
The externally threaded M12 x 1 housing simplifies mounting, while the all-metal construction helps the sensor stand up to demanding process conditions. With strong contamination tolerance and reliable alignment characteristics, the M12 family is well suited for washdown areas, packaging machinery, material handling, and other applications where compact installation and long-term durability matter.
| Transmitter wavelength | 880 nm |
|---|---|
| Opening angle / transmit power, standard | 10° / 40 mWsr |
| Opening angle / transmit power, HP | 20° / 70 mWsr |
| Opening angle / transmit power, ITA | 6° / 350 mWsr |
| Connection | 2-pin PVC cable, 3-pin circular plug M8, or 4-pin circular plug M12 |
| Housing material | Nickel-plated brass or stainless steel |
| Protection class | IP67 |
| Operating temperature | -25 °C to +65 °C (-13 °F to +149 °F) |
| Storage temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Vibration | 10 to 55 Hz, 1.5 mm |
| Shock | 30 g |
| Receiver wavelength | 880 nm |
|---|---|
| Opening angle | 25° |
| Light immunity | 60,000 Lux |
| Connection | Shielded PVC cable, 3-pin circular plug M8, or 4-pin circular plug M12 |
| Housing material | Nickel-plated brass or stainless steel |
| Protection class | IP67 |
| Operating temperature | -25 °C to +65 °C (-13 °F to +149 °F) |
| Storage temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Vibration | 10 to 55 Hz, 1.5 mm |
| Shock | 30 g |
| Version | Order code, Standard | Order code, HP | Order code, ITA |
|---|---|---|---|
| Transmitter M12, nickel-plated brass, 5 m cable | IT-M12-5 | IT-M12HP-5 | ITA-CLN-5 |
| Transmitter M12, nickel-plated brass, 15 m cable | IT-M12-15 | IT-M12HP-15 | ITA-CLN-15 |
| Transmitter M12, nickel-plated brass, 4-pin circular plug M12 | IT-M12-4QD | IT-M12HP-4QD | ITA-CLN-C4 |
| Transmitter M12, nickel-plated brass, 3-pin circular plug M8 | IT-M12-3QD | IT-M12HP-3QD | ITA-CLN-B3 |
| Transmitter M12, stainless steel, 5 m cable | IT-M12VA-5 | IT-M12VAHP-5 | ITA-CLV-5 |
| Transmitter M12, stainless steel, 15 m cable | IT-M12VA-15 | IT-M12VAHP-15 | ITA-CLV-15 |
| Transmitter M12, stainless steel, 4-pin circular plug M12 | IT-M12VA-4QD | IT-M12VAHP-4QD | ITA-CLV-C4 |
| Transmitter M12, stainless steel, 3-pin circular plug M8 | IT-M12VA-3QD | IT-M12VAHP-3QD | ITA-CLV-B3 |
| Receiver M12, nickel-plated brass, 5 m cable | IR-M12-5 | - | - |
| Receiver M12, nickel-plated brass, 15 m cable | IR-M12-15 | - | - |
| Receiver M12, nickel-plated brass, 4-pin circular plug M12 | IR-M12-4QD | - | - |
| Receiver M12, nickel-plated brass, 3-pin circular plug M8 | IR-M12-3QD | - | - |
| Receiver M12, stainless steel, 5 m cable | IR-M12VA-5 | - | - |
| Receiver M12, stainless steel, 15 m cable | IR-M12VA-15 | - | - |
| Receiver M12, stainless steel, 4-pin circular plug M12 | IR-M12VA-4QD | - | - |
| Receiver M12, stainless steel, 3-pin circular plug M8 | IR-M12VA-3QD | - | - |
Other cable lengths are available upon request.
